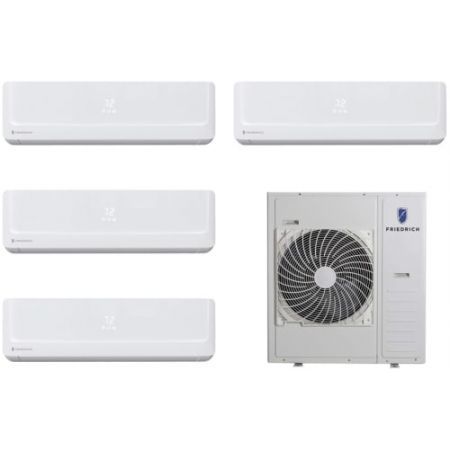

| Friedrich Floating Air Pro FD36K4RPACK04 Capacity |
| Heating Capacity | 36,000 BTU |
| Max Connectable Capacity | 48,000 BTU |
| Friedrich Floating Air Pro FD36K4RPACK04 General |
| AC System Type | Mini Split |
| Component Type | Outdoor Unit |
| Operation | Cooling with Heat Pump |
| Min No. of Connectible Indoor Units | 1 |
| Max No. of Connectible Indoor Units | 4 |
| Friedrich Floating Air Pro FD36K4RPACK04 Electrical Data |
| Power Source V / Hz / Ø | (208/230/60/1) |
| Running Current Cooling - Rated (Amps) | 11 Amps |
| Running Current Heating - Rated (Amps) | 13 Amps |
| Power Input Cooling - Min. (Watts) | 700 Watts |
| Power Input Cooling - Rated (Watts) | 2,520 Watts |
| Power Input Cooling - Max. (Watts) | 5,000 Watts |
| Power Input Heating - Min. (Watts) | 600 Watts |
| Power Input Heating - Rated (Watts) | 3,060 Watts |
| Power Input Heating - Max. (Watts) | 6,000 Watts |
| Friedrich Floating Air Pro FD36K4RPACK04 Performance |
| Compressor Noise Level - Cooling (dB) | 59 dB |
| Compressor Noise Level - Heating (dB) | 59 dB |
| Energy Star Certified | Yes |
| Friedrich Floating Air Pro FD36K4RPACK04 Piping Connections |
| Power and Communication Cable - No. | 4 |
| Power and Communication Cable - AWG | 14 |
| Liquid Line Outer Diameter | 1/4 Inch |
| Suction Line Outer Diameter | 3/8 Inch |
| Drain Line Inner Diameter | 13/22 Inch |
| Friedrich Floating Air Pro FD36K4RPACK04 Refrigeration System |
| Refrigerant Type | R-410A |
| Factory Precharge | 105.82 Oz. |
| Min. Line Length - Each | 66 Ft. |
| Max. Line Length - Each | 66 Ft. |
| Min. Line Length - Total | 197 Ft. |
| Max. Line Length - Total | 197 Ft. |
| Max. Height Diff. btwn. Indoor and Outdoor Units | 49 Ft. |
| Max. Height Diff. btwn. Indoor Units | 24 Ft. |
| Outside Temperature Range for Cooling - Min. | 14 °F |
| Outside Temperature Range for Cooling - Max. | 114.8 °F |
| Outside Temperature Range for Heating - Min. | -13 °F |
| Outside Temperature Range for Heating - Max. | 75.2 °F |
| Friedrich Floating Air Pro FD36K4RPACK04 Features |
| Inverter (Variable speed compressor) | Yes |
| Low Ambient Operating Threshold (F°) | -4 |
| Corrosion Protection | Yes |
| Friedrich Floating Air Pro FD36K4RPACK04 Technical Details |
| Voltage | 230/208 Volts |
| Friedrich Floating Air Pro FD36K4RPACK04 Dimensions |
| Width | 37 3/8 Inch |
| Depth | 13 3/8 Inch |
| Height | 41 3/8 Inch |
| Net Weight | 186 Lbs. |
| Shipping Weight | 216 Lbs. |
