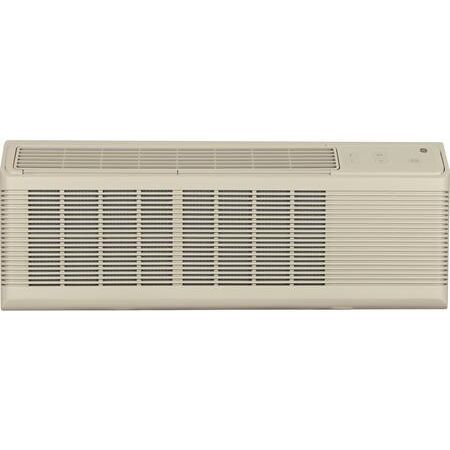

| GE AZ45E12DAC Appearance |
| Type | PTAC |
| Chassis Type | Slide Out |
| Cooling Capacity (BTU) | 11600 |
| GE AZ45E12DAC Features |
| Heat | Electric Heat |
| Number of Cooling Speeds | 2 |
| Adjustable Air Direction | Yes |
| Number of Air Directions | 3 |
| Sleep Mode | Yes |
| Slide Out Vent Filters | Yes |
| Freeze Sentinel | Yes |
| Heat Sentinel | Yes |
| UL Certification | Yes |
| Weather Protection Seal | Yes |
| Eco-Friendly Refrigerant | Yes |
| Energy Efficient | Yes |
| DC Motor | Yes |
| GE AZ45E12DAC Technical Details |
| Color | Bisque |
| Energy Star | No |
| EER | 11.8 |
| Volts | 230/208 Volts |
| Dehumidification | 3.5 pts/hr |
| Amps | 15 Amps |
| Wattage | 985 Watts |
| Filter Type | Tilt out |
| Frequency | 60 Hz. |
| UL | Yes |
| Power Factor | 98 |
| Refrigerant Type | R-410A Non-Ozone-Depleting Refrigerant |
| Air Filter Included | Yes |
| cUL | Yes |
| AHRI Certified | Yes |
| Vented Outside | Yes |
| Maximum Air Flow | 420 CFM |
| Provides Heating | Yes |
| Corrosion Protection | Yes |
| Cooling Amperes L.R. | 29.5 |
| Cooling Amperes | 4.7 |
| Weight | 110.00 lbs |
| GE AZ45E12DAC Dimensions |
| Width | 42" |
| Height | 16" |
| Depth | 20.8125" |
