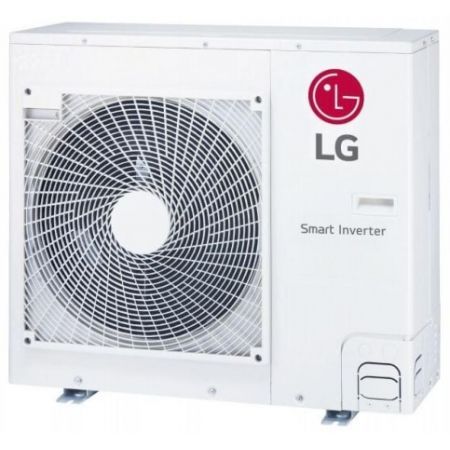

| LG LG3ZMSS26 Capacity |
| BTU Class | 24,000 BTU |
| Heating Capacity | 26,000 BTU |
| Min Connectable Capacity | 8,400 BTU |
| Max Connectable Capacity | 31,200 BTU |
| LG LG3ZMSS26 General |
| AC System Type | Mini Split |
| Component Type | Outdoor Unit |
| Operation | Cooling with Heat Pump |
| Min No. of Connectible Indoor Units | 2 |
| Max No. of Connectible Indoor Units | 3 |
| LG LG3ZMSS26 Electrical Data |
| Power Source V / Hz / Ø | (208/230/60/1) |
| Running Current Cooling - Min. (Amps) | 4.2 Amps |
| Running Current Cooling - Rated (Amps) | 7.8 Amps |
| Running Current Cooling - Max. (Amps) | 11.9 Amps |
| Running Current Heating - Min. (Amps) | 4.8 Amps |
| Running Current Heating - Rated (Amps) | 9.9 Amps |
| Running Current Heating - Max (Amps) | 14.9 Amps |
| Minimum Ampacity (Amps) | 19 Amps |
| Max. TD Fuse/Breaker | 30 Amps |
| Power Input Cooling - Min. (Watts) | 930 Watts |
| Power Input Cooling - Rated (Watts) | 1,780 Watts |
| Power Input Cooling - Max. (Watts) | 2,630 Watts |
| Power Input Heating - Min. (Watts) | 1,250 Watts |
| Power Input Heating - Rated (Watts) | 2,120 Watts |
| Power Input Heating - Max. (Watts) | 3,470 Watts |
| Rated Amps | 15.73 Amps |
| LG LG3ZMSS26 Performance |
| Compressor Noise Level - Cooling (dB) | 52 dB |
| Compressor Noise Level - Heating (dB) | 55 dB |
| Energy Star Certified | Yes |
| LG LG3ZMSS26 Piping Connections |
| Power and Communication Cable - No. | 3 |
| Power and Communication Cable - AWG | 12 |
| Liquid Line Outer Diameter | 1/4 Inch |
| Suction Line Outer Diameter | 3/8 Inch |
| Power Supply Cable - No. x AWG | 3C x 12 |
| LG LG3ZMSS26 Refrigeration System |
| Refrigerant Type | R-410A |
| Compressor Type | Twin Rotary |
| Refrigerant Control | EEV |
| Refrigerant Charge | 7.05 Ft. |
| Piping Length (No Additional Refrigerant) | 73.8 Ft. |
| Min. Line Length - Each | 82 Ft. |
| Max. Line Length - Total | 246.1 Ft. |
| Max. Height Diff. btwn. Indoor and Outdoor Units | 49.2 Ft. |
| Max. Height Diff. btwn. Indoor Units | 24.6 Ft. |
| Outside Temperature Range for Cooling - Min. | 14 °F |
| Outside Temperature Range for Cooling - Max. | 118 °F |
| Outside Temperature Range for Heating - Min. | -13 °F |
| Outside Temperature Range for Heating - Max. | 75 °F |
| LG LG3ZMSS26 Features |
| Inverter (Variable speed compressor) | Yes |
| Low Ambient Operating Threshold (F°) | -13 |
| Corrosion Protection | Yes |
| No. of Fan Speeds | 3 |
| LG LG3ZMSS26 Technical Details |
| Voltage | 230/208 Volts |
| LG LG3ZMSS26 Dimensions |
| Width | 37 13/32 Inch |
| Depth | 13 Inch |
| Height | 32 27/32 Inch |
| Net Weight | 152.1 Lbs. |
| Shipping Weight | 165.3 Lbs. |
