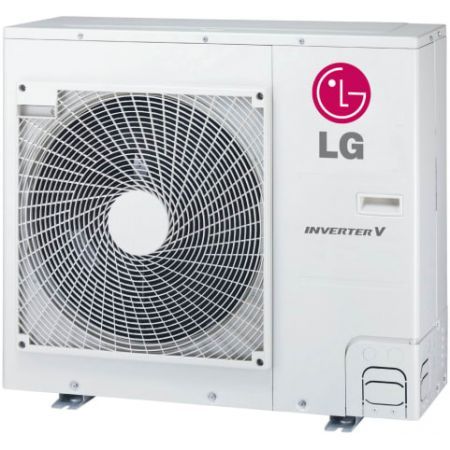

| LG LG3ZMSS519 Capacity |
| BTU Class | 34,000 BTU |
| Heating Capacity | 41,000 BTU |
| Min Connectable Capacity | 14,000 BTU |
| Max Connectable Capacity | 48,000 BTU |
| LG LG3ZMSS519 General |
| AC System Type | Mini Split |
| Component Type | Outdoor Unit |
| Operation | Cooling with Heat Pump |
| Min No. of Connectible Indoor Units | 2 |
| Max No. of Connectible Indoor Units | 4 |
| LG LG3ZMSS519 Electrical Data |
| Power Source V / Hz / Ø | (208/230/60/1) |
| Power Input Cooling - Rated (Watts) | 2,460 Watts |
| Power Input Heating - Rated (Watts) | 2,740 Watts |
| Rated Amps | 15.13 Amps |
| LG LG3ZMSS519 Performance |
| Compressor Noise Level - Cooling (dB) | 52 dB |
| Compressor Noise Level - Heating (dB) | 55 dB |
| Energy Star Certified | No |
| LG LG3ZMSS519 Piping Connections |
| Power and Communication Cable - No. | 4 |
| Power and Communication Cable - AWG | 18 |
| Liquid Line Outer Diameter | 1/4 Inch |
| Suction Line Outer Diameter | 3/8 Inch |
| LG LG3ZMSS519 Refrigeration System |
| Refrigerant Type | R-410A |
| Compressor Type | Inverter |
| Refrigerant Control | EEV |
| Refrigerant Charge | 6.18 Ft. |
| Piping Length (No Additional Refrigerant) | 98.4 Ft. |
| Max. Height Diff. btwn. Indoor and Outdoor Units | 49.2 Ft. |
| Max. Height Diff. btwn. Indoor Units | 24.6 Ft. |
| Outside Temperature Range for Cooling - Min. | 14 °F |
| Outside Temperature Range for Cooling - Max. | 118 °F |
| Outside Temperature Range for Heating - Min. | -4 °F |
| Outside Temperature Range for Heating - Max. | 64 °F |
| LG LG3ZMSS519 Features |
| Inverter (Variable speed compressor) | Yes |
| Low Ambient Operating Threshold (F°) | 14 |
| Corrosion Protection | Yes |
| LG LG3ZMSS519 Technical Details |
| ADA Compliant | No |
| Voltage | 230/208 Volts |
| LG LG3ZMSS519 Dimensions |
| Width | 37 13/32 Inch |
| Depth | 13 Inch |
| Height | 32 27/32 Inch |
| Net Weight | 137 Lbs. |
| Shipping Weight | 148 Lbs. |
