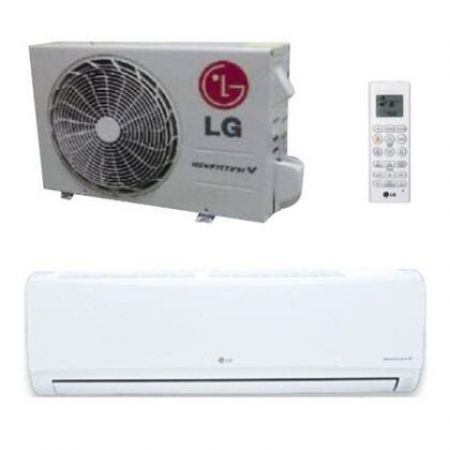

| LG LS090HEV Details |
| Number of Zones | 1 |
| Indoor Unit Type | Wall Mount |
| Provides Heating | Yes |
| Cooling Capacity (BTU) | 8,500 |
| Heating Capacity (BTU) | 9,000 |
| LG LS090HEV Features |
| Wireless Remote Controller | Included |
| Decibel Rating | 39 dBA |
| Number of Cooling Speeds | 4 |
| Adjustable Air Direction | Yes |
| Number of Air Directions | 2 |
| Sleep Mode | Yes |
| Auto Restart | Yes |
| Chaos Swing | Yes |
| Programmable 24-Hour Timer | Yes |
| Remote Control | Yes |
| Energy Saver Mode | Yes |
| Auto Changeover | Yes |
| AHRI Certified | Yes |
| ETL Listed | Yes |
| Gold Fin Anti-Corrosion | Yes |
| Inverter Technology | Yes |
| R410A Refrigerant | Yes |
| LG LS090HEV Technical Details |
| Color | White |
| Energy Star | No |
| Type | Mini Split |
| EER | 10.9 |
| Volts | 230/208 Volts |
| Dehumidification | 2.11 Pts/Hr |
| Amps | 15 Amps |
| Fan Speeds | 3/4/3 |
| Warranty | 5 Years Parts, 7 Years Compressor |
| Zones | Single |
| SEER | 16.3 |
| Frequency | 60 Hz. |
| UL | No |
| Refrigerant Type | R410A |
| Wireless Remote Control | Included |
| Outdoor Unit Height | 19.031" |
| Outdoor Unit Width | 28.25" |
| Outdoor Unit Depth | 10.625" |
| HSPF | 8.5 |
| Indoor Unit Width | 29.75" |
| Indoor Unit Depth | 7.25" |
| Indoor Unit Height | 10.44" |
| With Heat | Yes |
| Built In WiFi | No |
| Outdoor Model | LSU090HEV |
| System Model | LS090HEV |
| Indoor Model | LSN090HEV |
| Air Circulation (H/M/L) | 276/226/177 CFM |
| Indoor dB(A) | 39/33/25 dB(A) |
| Outdoor dB(A) | 47 dB(A) |
| Rated Voltage Outdoor | 230/208-60-1 |
| Rated Voltage Indoor | 230/208-60-1 |
| Rated Amps - Cooling | 7.3 Amps |
| Rated Amps - Heating | 7.3 Amps |
| Power Input - Cooling | 0.78 kW |
| Power Input - Heating | 0.78 kW |
| Min. Circuit Ampacity (MCA) | 9 |
| Max. Overcurrent Protection (MOP) | 15 |
| Liquid Line (in, OD) | .25" |
| Vapor Line (in, OD) | .375" |
| Additional Refrigerant | 0.22 Oz./Ft. |
| Max. Pipe Length | 49.2 ft. |
| Piping Length (No Additional Refrigerant) | 24.6 Ft. |
| Max. Elevation | 22.9 Ft. |
| Refrigerant Control | Capillary Tube |
| Refrigerant Charge | 1.65 lbs. |
| Cooling - Outdoor (F DB) | 64 - 118F |
| Heating - Outdoor (F DB) | 23 - 75F |
| Cooling - Indoor (F DB) | 64 - 90F |
| Heating - Indoor (F DB) | 61 - 86F |
| AHRI Certified | Yes |
| Window Compatible | No |
| Maximum Air Flow | 276 CFM |
| Cooling BTU Output | 9000 |
| Weight | 77.00 lbs |
