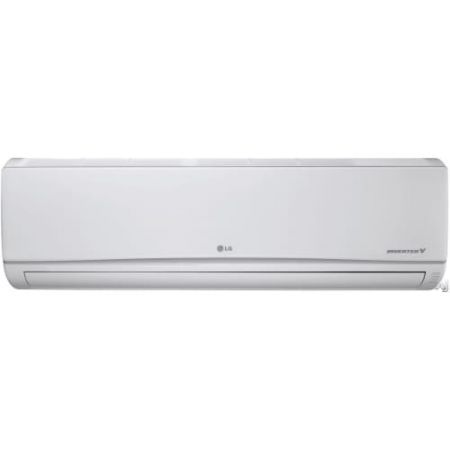

| LG LSN120HEV2 Capacity |
| BTU Class | 12,000 BTU |
| Heating Capacity | 12,000 BTU |
| LG LSN120HEV2 General |
| AC System Type | Mini Split |
| Component Type | Indoor Unit |
| Operation | Cooling with Heat Pump |
| Placement Type | Wall Mount |
| Wireless Remote Control(s) Included | Included |
| Thermostat Range - Cooling (F°) | 53-75 |
| Thermostat Range - Heating (F°) | 60-86 |
| LG LSN120HEV2 Electrical Data |
| Power Source V / Hz / Ø | (208/230/60/1) |
| Rated Amps | 7.4 Amps |
| LG LSN120HEV2 Performance |
| Fan | Cross-Flow |
| No. of Fans | 1 |
| Motor | Brushless Digitally Controlled |
| Motor Drive | Direct |
| Energy Star Certified | No |
| Moisture Removal (Pts/hr) | 2.75 Pts./Hr. |
| Airflow Rate Quiet (CFM) | 148 CFM |
| Airflow Rate Low (CFM) | 264 CFM |
| Airflow Rate Medium (CFM) | 353 CFM |
| Airflow Rate High (CFM) | 459 CFM |
| Operating Sound Level - Quiet (dB) | 21 dB |
| Operating Sound Level - Low (dB) | 28 dB |
| Operating Sound Level - Medium (dB) | 36 dB |
| Operating Sound Level - High (dB) | 42 dB |
| Temperature Sensor | Thermistor |
| LG LSN120HEV2 Piping Connections |
| Power and Communication Cable - No. | 4 |
| Power and Communication Cable - AWG | 18 |
| Liquid Line Outer Diameter | 1/4 Inch |
| Suction Line Outer Diameter | 3/8 Inch |
| Drain Line Outer Diameter | 27/32 Inch |
| Drain Line Inner Diameter | 5/8 Inch |
| Power Supply Cable - No. x AWG | 3 x 14 |
| LG LSN120HEV2 Refrigeration System |
| Refrigerant Type | R-410A |
| Refrigerant Connection Type | Flare |
| Refrigerant Control | EEV |
| Piping Length (No Additional Refrigerant) | 24.6 Ft. |
| Min. Line Length - Each | 9.8 Ft. |
| Min. Line Length - Total | 9.8 Ft. |
| Max. Line Length - Total | 49.2 Ft. |
| LG LSN120HEV2 Features |
| Control Lock Function (Concealed Duct Only) | No |
| Human Detection Technology | No |
| Room-Freeze Protection | No |
| Filter Clean Notification | No |
| Hot Start Heating System (Heat Pumps Only) | Yes |
| Program Timer | Yes |
| Manual Power Switch | Yes |
| Defrost/Deicing | Yes |
| Air Filter | Yes |
| Filters Washable | Yes |
| Filters Anti-microbial | No |
| Restart Delay | No |
| Sleep Mode | Yes |
| Self-diagnosis | Yes |
| Condensate Sensor Connection | Yes |
| Soft Start | No |
| Quiet/Sleep Mode | Yes |
| Self-Cleaning Indoor Coil | Yes |
| Built-in Drain Pump (Indoor Unit) | No |
| Hidden Display | No |
| Surge Cool/Heat | Yes |
| Auto Operation | No |
| Auto Restart on Power Failure | Yes |
| Auto-changeover | Yes |
| Automatic Louver Adjustment | No |
| 4-Way Swing | No |
| Dehumidifying Mode | No |
| No. of Fan Speeds | 6 |
| WiFi Connected | No |
| LG LSN120HEV2 Technical Details |
| Voltage | 230/208 Volts |
| LG LSN120HEV2 Dimensions |
| Width | 34 13/16 Inch |
| Depth | 8 1/4 Inch |
| Height | 11 1/4 Inch |
| Net Weight | 19.2 Lbs. |
| Shipping Weight | 25.4 Lbs. |
