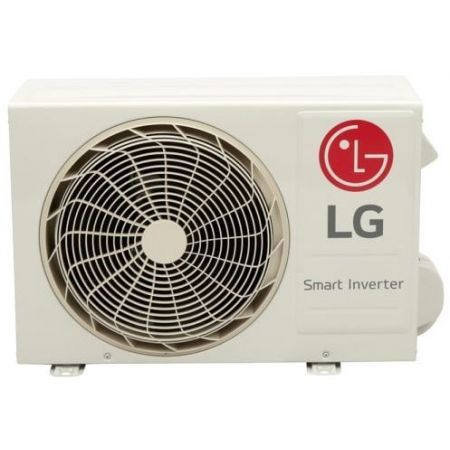

| LG LSU120HEV2 Capacity |
| BTU Class | 12,000 BTU |
| Heating Capacity | 12,000 BTU |
| Min Connectable Capacity | 3,070 BTU |
| Max Connectable Capacity | 13,780 BTU |
| LG LSU120HEV2 General |
| AC System Type | Mini Split |
| Component Type | Outdoor Unit |
| Operation | Cooling with Heat Pump |
| Min No. of Connectible Indoor Units | 1 |
| Max No. of Connectible Indoor Units | 1 |
| LG LSU120HEV2 Electrical Data |
| Power Source V / Hz / Ø | (208/230/60/1) |
| Running Current Cooling - Rated (Amps) | 7.4 Amps |
| Running Current Heating - Rated (Amps) | 7.4 Amps |
| Minimum Ampacity (Amps) | 10 Amps |
| Max. TD Fuse/Breaker | 15 Amps |
| Power Input Cooling - Rated (Watts) | 1,142 Watts |
| Power Input Heating - Rated (Watts) | 1,000 Watts |
| Rated Amps | 7.4 Amps |
| LG LSU120HEV2 Performance |
| Compressor Noise Level - Cooling (dB) | 50 dB |
| Compressor Noise Level - Heating (dB) | 50 dB |
| Energy Star Certified | No |
| LG LSU120HEV2 Piping Connections |
| Power and Communication Cable - No. | 4 |
| Power and Communication Cable - AWG | 18 |
| Liquid Line Outer Diameter | 1/4 Inch |
| Suction Line Outer Diameter | 3/8 Inch |
| Drain Line Outer Diameter | 27/32 Inch |
| Drain Line Inner Diameter | 5/8 Inch |
| Power Supply Cable - No. x AWG | 3 x 14 |
| LG LSU120HEV2 Refrigeration System |
| Refrigerant Type | R-410A |
| Compressor Type | Twin Rotary |
| Refrigerant Control | EEV |
| Refrigerant Charge | 1.88 Ft. |
| Piping Length (No Additional Refrigerant) | 24.6 Ft. |
| Min. Line Length - Each | 9.8 Ft. |
| Max. Line Length - Each | 49.2 Ft. |
| Min. Line Length - Total | 9.8 Ft. |
| Max. Line Length - Total | 49.2 Ft. |
| Max. Height Diff. btwn. Indoor and Outdoor Units | 23 Ft. |
| Outside Temperature Range for Cooling - Min. | 14 °F |
| Outside Temperature Range for Cooling - Max. | 118 °F |
| Outside Temperature Range for Heating - Min. | 14 °F |
| Outside Temperature Range for Heating - Max. | 65 °F |
| LG LSU120HEV2 Features |
| Sleep Mode | Yes |
| Inverter (Variable speed compressor) | Yes |
| Low Ambient Operating Threshold (F°) | 14 |
| Corrosion Protection | Yes |
| No. of Fan Speeds | 6 |
| WiFi Connected | No |
| LG LSU120HEV2 Technical Details |
| Voltage | 230/208 Volts |
| LG LSU120HEV2 Dimensions |
| Width | 28 1/4 Inch |
| Depth | 9 1/16 Inch |
| Height | 19 1/2 Inch |
| Net Weight | 55.3 Lbs. |
| Shipping Weight | 60 Lbs. |
