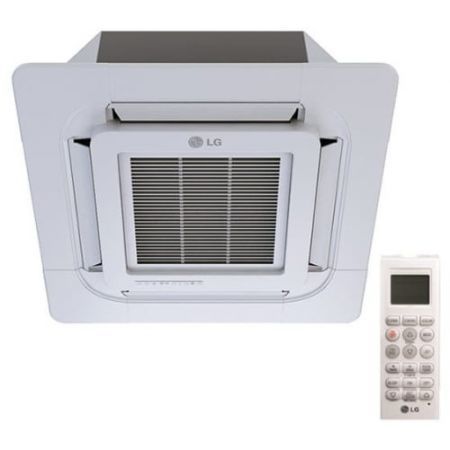

| LG Multi F Series LMCN078HV Capacity |
| BTU Class | 7,000 BTU |
| Heating Capacity | 8,100 BTU |
| LG Multi F Series LMCN078HV General |
| AC System Type | Mini Split |
| Component Type | Indoor Unit |
| Operation | Cooling with Heat Pump |
| Placement Type | Ceiling Cassette |
| Wireless Remote Control(s) Included | Included |
| Wired Remote Control(s) Included | Optional |
| Thermostat Range - Cooling (F°) | 57-77 |
| Thermostat Range - Heating (F°) | 59-81 |
| LG Multi F Series LMCN078HV Electrical Data |
| Power Source V / Hz / Ø | (208/230/60/1) |
| Rated Amps | 0.25 Amps |
| LG Multi F Series LMCN078HV Performance |
| Fan | Turbo |
| No. of Fans | 1 |
| Motor | Brushless Digitally Controlled |
| Motor Drive | Direct |
| Airflow Rate Low (CFM) | 177 CFM |
| Airflow Rate Medium (CFM) | 212 CFM |
| Airflow Rate High (CFM) | 265 CFM |
| Operating Sound Level - Low (dB) | 24 dB |
| Operating Sound Level - Medium (dB) | 27 dB |
| Operating Sound Level - High (dB) | 31 dB |
| Temperature Sensor | Thermistor |
| Entering Mixed Air - Cooling | 57° - 77°F DB |
| Entering Mixed Air - Heating | 59° - 81°F DB |
| LG Multi F Series LMCN078HV Piping Connections |
| Liquid Line Outer Diameter | 1/4 Inch |
| Suction Line Outer Diameter | 3/8 Inch |
| Power Supply Cable - No. x AWG | 3 x 12 |
| LG Multi F Series LMCN078HV Refrigeration System |
| Refrigerant Type | R-410A |
| Refrigerant Connection Type | Flare |
| Refrigerant Control | EEV |
| Piping Length (No Additional Refrigerant) | 24.6 Ft. |
| LG Multi F Series LMCN078HV Features |
| Control Lock Function (Concealed Duct Only) | Yes |
| Human Detection Technology | No |
| Room-Freeze Protection | No |
| Filter Clean Notification | No |
| Hot Start Heating System (Heat Pumps Only) | Yes |
| Program Timer | Yes |
| Manual Power Switch | Yes |
| Defrost/Deicing | Yes |
| Air Filter | Yes |
| Filters Washable | Yes |
| Filters Anti-microbial | No |
| Restart Delay | No |
| Sleep Mode | Yes |
| Self-diagnosis | Yes |
| Condensate Sensor Connection | Yes |
| Soft Start | No |
| Quiet/Sleep Mode | Yes |
| Self-Cleaning Indoor Coil | Yes |
| Built-in Drain Pump (Indoor Unit) | Yes |
| Hidden Display | No |
| Surge Cool/Heat | Yes |
| Auto Operation | Yes |
| Auto Restart on Power Failure | Yes |
| Auto-changeover | Yes |
| Automatic Louver Adjustment | No |
| 4-Way Swing | No |
| Dehumidifying Mode | Yes |
| No. of Fan Speeds | 3 |
| LG Multi F Series LMCN078HV Technical Details |
| Voltage | 230/208 Volts |
| LG Multi F Series LMCN078HV Dimensions |
| Width | 22 7/16 Inch |
| Depth | 22 7/16 Inch |
| Height | 8 7/16 Inch |
| Net Weight | 26 Lbs. |
| Shipping Weight | 31 Lbs. |
