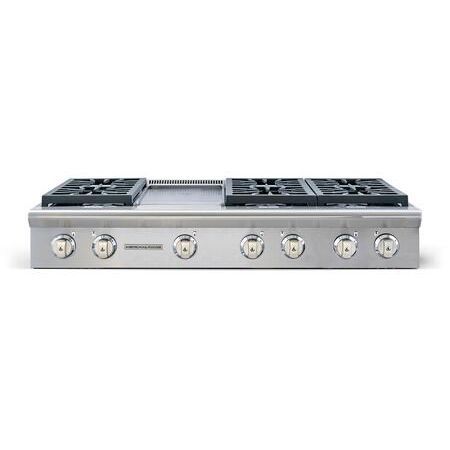

| American Range ARSCT486GDN Appearance |
| Type | Rangetop |
| Style | Sealed Burner |
| Gas Type | Natural Gas |
| American Range ARSCT486GDN Features |
| Highest Burner Output | 25000 BTU |
| Burners | 6 |
| Griddle | Yes |
| Downdraft Venting | No |
| Control Type | Knobs |
| Installs Over Oven | No |
| Continuous Grates | Yes |
| Electronic Ignition | Yes |
| Sealed Burners | Yes |
| Continuous Cast Iron Grates | Yes |
| Blue LED Indicator Iights | Yes |
| Heavy Duty Knobs | Yes |
| American Range ARSCT486GDN Technical Details |
| Color | Stainless Steel |
| Width | 47.88" |
| Fuel Type | Gas |
| Height | 9.32" |
| Volts | 120 Volts |
| Portable | No |
| Sabbath Mode | No |
| Amps | 15 Amps |
| Timer | No |
| Cast Iron Grates | Yes |
| Control Location | Front |
| Grill | No |
| Pro-Style | Yes |
| French Top | No |
| Name | Legend |
| Cooktop Configuration | 6 Burners and 11" Griddle |
| Reversible Grates | No |
| Front Left Output | 18000 |
| Back Left Output | 13000 |
| Back Right Output | 13000 |
| Front Right Output | 25000 |
| Middle Front Right Output | 13000 |
| Middle Back Right Output | 18000 |
| Griddle Output | 20000 |
| Weight | 85.00 lbs |
| American Range ARSCT486GDN Dimensions |
| Exterior Width | 48" |
| Cutout Depth | 24.75" |
| Cutout Width | 48" |
| Cutout Height | 8" |
| Depth | 29.5" |
