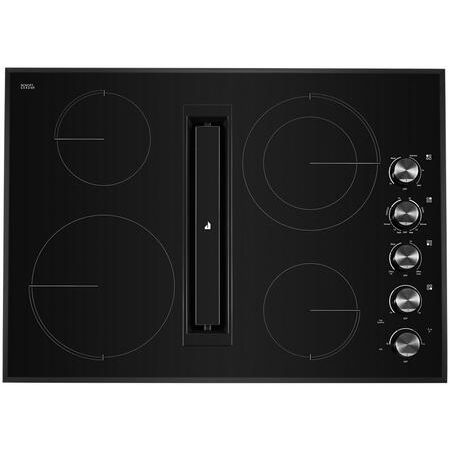

| JennAir JED3430GB Appearance |
| Type | Cooktop |
| Fuel Type | Electric |
| Style | Smoothtop |
| Elements | 4 |
| Downdraft Venting | Yes |
| Color | Black |
| Control Type | Knobs |
| JennAir JED3430GB Features |
| Hot Surface Indicator | Yes |
| Light | Yes |
| UL Certification | Yes |
| Dual-Choice Element | Yes |
| JX3 Downdraft Ventilation System | Yes |
| Die-Cast Metal Knobs | Yes |
| DuraFinish Glass Protection | Yes |
| 310 CFM Motor Class | Yes |
| Downdraft Venting | Yes |
| JennAir JED3430GB Electrical Specifications |
| Volts | 220 Volts |
| Amps | 40 Amps |
| JennAir JED3430GB Details |
| Control Location | Side |
| Pro-Style | Yes |
| Luxury | Yes |
| JennAir JED3430GB Technical Details |
| Frequency | 60 Hz. |
| Warranty Terms | 5 Year Limited Warranty |
| Weight | 35 lbs |
| JennAir JED3430GB Certification |
| ADA Compliant | Yes |
| CSA Safety Listing | Yes |
| UL Safety Listing | Yes |
| JennAir JED3430GB Dimensions |
| Exterior Width | 30" |
| Cutout Width | 28.875" |
| Cutout Depth | 21.125" |
| Depth | 22.0625" |
| Width | 30.875" |
| Height | 3.66" |
