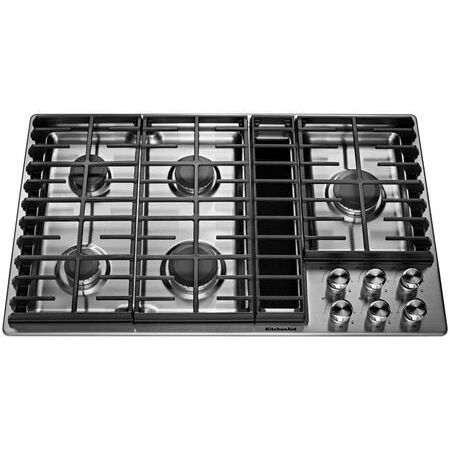

| KitchenAid KCGD506GSS Appearance |
| Type | Cooktop |
| Style | Sealed Burner |
| Gas Type | Natural Gas |
| KitchenAid KCGD506GSS Features |
| Highest Burner Output | 17000 |
| Burners | 5 |
| Griddle | Yes |
| Pan Presence Sensor | No |
| Downdraft Venting | Yes |
| Control Type | Knobs |
| Electronic Ignition | Yes |
| Stainless Steel Knobs | Yes |
| Cast Iron Grates | Yes |
| KitchenAid KCGD506GSS Technical Details |
| Color | Stainless Steel |
| Width | 36" |
| Fuel Type | Gas |
| Height | 18.44" |
| Volts | 120 Volts |
| Portable | No |
| Sabbath Mode | No |
| Amps | 15 Amps |
| Timer | No |
| Induction | No |
| Light | No |
| Cast Iron Grates | Yes |
| Control Location | Side |
| Grill | No |
| Warranty Terms | 1 Year Limited Warranty |
| Hot Surface Indicator | No |
| French Top | No |
| Reversible Grates | No |
| Convertible to Liquid Propane | Yes |
| Front Left Output | 10000 |
| Back Left Output | 5000 |
| Back Right Output | 17000 |
| Middle Back Output | 12500 |
| Middle Front Output | 15000 |
| Weight | 78.00 lbs |
| KitchenAid KCGD506GSS Details |
| UL Safety Listing | Yes |
| KitchenAid KCGD506GSS Dimensions |
| Exterior Width | 36" |
| Cutout Depth | 19.9375" |
| Cutout Width | 34.75" |
| Cutout Height | 18.44" |
| Depth | 21.5" |
