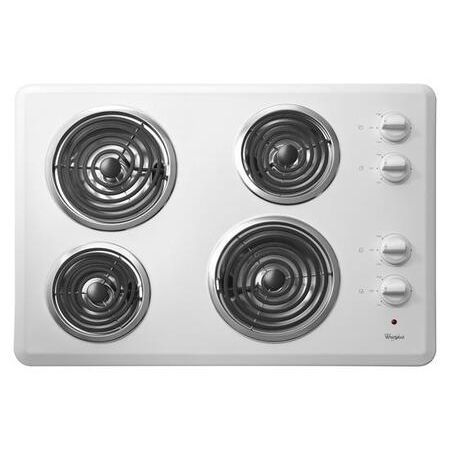

| Whirlpool WCC31430AW Appearance |
| Type | Cooktop |
| Style | Coil |
| Whirlpool WCC31430AW Cooking Features |
| Elements | 4 |
| Downdraft Venting | No |
| Griddle | No |
| Control Type | Knobs |
| Hot Surface Indicator | No |
| Pan Presence Sensor | No |
| Installs Over Oven | Yes |
| Whirlpool WCC31430AW Technical Details |
| Color | White |
| Width | 30" |
| Fuel Type | Electric |
| Height | 3.25" |
| Volts | 240 Volts |
| Portable | No |
| Sabbath Mode | No |
| Wire | 3 or 4 |
| Amps | 40 Amps |
| Timer | No |
| Cutout Depth | 19.8125" |
| Cutout Height | 4.75" |
| Light | No |
| Control Location | Side |
| Frequency | 60 Hz. |
| Grill | No |
| Warranty Terms | Limited 1 Year Parts and Labor |
| French Top | No |
| Front Left Output | 1500 |
| Back Left Output | 2350 |
| Back Right Output | 1500 |
| Front Right Output | 2350 |
| Highest Element Output | 2350 Watts |
| Weight | 25.00 lbs |
| Whirlpool WCC31430AW Features |
| Dishwasher Safe Knobs | Yes |
| Chrome Drip Pan | Yes |
| Whirlpool WCC31430AW Dimensions |
| Exterior Width | 30" |
| Cutout Width | 28.3125" |
| Depth | 21" |
