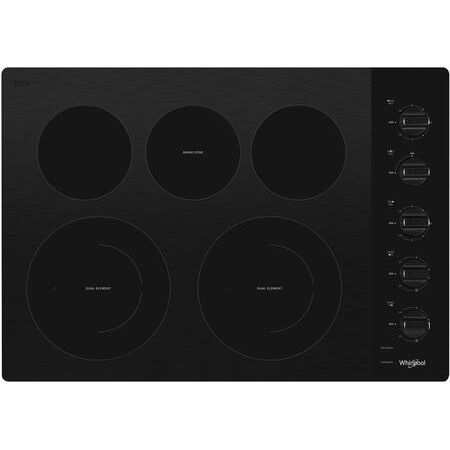

| Whirlpool WCE77US0HB Appearance |
| Type | Cooktop |
| Style | Smoothtop |
| Whirlpool WCE77US0HB Cooking Features |
| Elements | 5 |
| Downdraft Venting | No |
| Griddle | No |
| Control Type | Knobs |
| Hot Surface Indicator | Yes |
| Pan Presence Sensor | No |
| Keep Warm Zone | Yes |
| Installs Over Oven | Yes |
| Whirlpool WCE77US0HB Technical Details |
| Color | Black |
| Width | 30.813" |
| Fuel Type | Electric |
| Height | 5.25" |
| Volts | 240/208 Volts |
| Portable | No |
| Sabbath Mode | No |
| Amps | 40 Amps |
| Timer | No |
| ADA Compliant | Yes |
| Cutout Depth | 20.5" |
| Induction | No |
| Light | No |
| Cast Iron Grates | No |
| Control Location | Side |
| Grill | No |
| Warranty Terms | Limited 1 Year Parts and Labor |
| French Top | No |
| Reversible Grates | No |
| Front Left Output | 3000 |
| Back Left Output | 1200 |
| Back Right Output | 1200 |
| Front Right Output | 3000 |
| Middle Back Output | 100 |
| Highest Element Output | 3000 Watts |
| Weight | 55.00 lbs |
| Whirlpool WCE77US0HB Features |
| Hot Surface Indicator | Yes |
| Dishwasher Safe Knobs | Yes |
| Whirlpool WCE77US0HB Dimensions |
| Exterior Width | 30" |
| Cutout Width | 29.5" |
| Depth | 22.813" |
