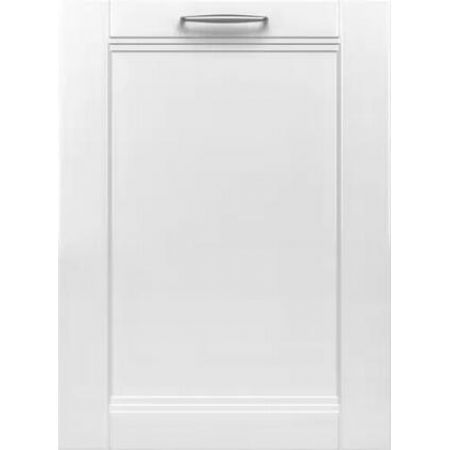

| Bosch SHVM4AYB3N Appearance |
| Type | Built-In |
| Control Style | Fully Integrated |
| Cycles | 4 |
| Capacity | 14 Place Settings |
| Accepts Panels | Yes |
| Bosch SHVM4AYB3N Handle |
| Handle Shape | Curved |
| Handle Type | Bar |
| Handle Color | Stainless Steel |
| Bosch SHVM4AYB3N Features |
| Noise Level | 49 dBA |
| Number of Racks | 2 |
| Rack Material | PVC |
| Tall Tub | No |
| Tub Material | Stainless Steel |
| Water Softener | No |
| Cutlery Tray | Yes |
| Hard Food Disposer | No |
| Sanitize Option | Yes |
| Energy Star | Yes |
| RackMatic | Yes |
| Stainless Steel Tub | Yes |
| NSF Certification | Yes |
| PureDry | Yes |
| Quiet Operation | Yes |
| Overflow Protection System | Yes |
| InfoLight | Yes |
| Bosch SHVM4AYB3N Technical Details |
| Color | Panel Ready |
| Weight | 77 lbs |
| Width | 23.56" |
| Watts | 1440 |
| Volts | 120 Volts |
| Amps | 15 Amps |
| Child Lock | No |
| Cutout Width | 23.563" |
| Cutout Depth | 21.625" |
| Cutout Height | 33.875" |
| Silverware Basket | Yes |
| Frequency | 60 Hz. |
| Delay Wash | Yes |
| Adjustable Racks | Yes |
| Heated Dry | Yes |
| Rinse Only Cycle | Yes |
| Handle Style | Scoop Handle |
| Double Drawer | Yes |
| Status Light | Yes |
| Condensate Dry | Yes |
| Leak Detection | Yes |
| Water Consumption Program 1 | 5.7-7.3 Gallons |
| Water Consumption Program 2 | 3.8-6.5 Gallons |
| Water Consumption Program 3 | 3-5.7 Gallons |
| Water Consumption Program 4 | 1.1 Gallons |
| Maximum Temperature for Water Intake | 122 F |
| Fuse protection | 12 A |
| Temperature Program 1 | 150-160 F |
| Temperature Program 2 | 125-130 F |
| Temperature Program 3 | 122-131 F |
| Bosch SHVM4AYB3N Dimensions |
| Exterior Width | 24" |
| Depth | 21.625" |
| Height | 33.875" |
