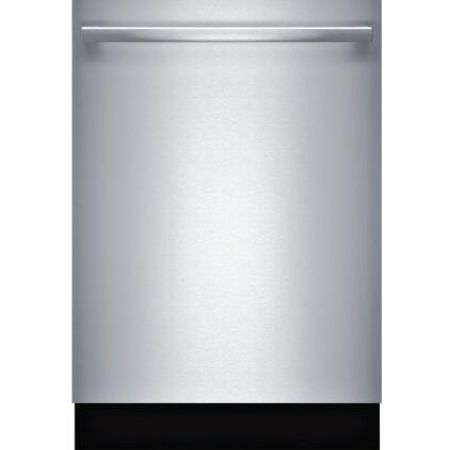

| Bosch SHX863WD5N Appearance |
| Type | Built-In |
| Control Style | Fully Integrated |
| Cycles | 5 |
| Capacity | 16 Place Settings |
| Accepts Panels | No |
| Bosch SHX863WD5N Handle |
| Handle Design | Contemporary |
| Handle Shape | Curved |
| Handle Type | Bar |
| Handle Color | Stainless Steel |
| Bosch SHX863WD5N Features |
| Noise Level | 44 dBA |
| Number of Racks | 3 |
| Tall Tub | Yes |
| Tub Material | Stainless Steel |
| Water Softener | No |
| Sanitize Option | Yes |
| ADA Compliant | No |
| Energy Star | Yes |
| InfoLight | Yes |
| Standard 3rd Rack | Yes |
| Low dBA | Yes |
| RackMatic | Yes |
| AquaStop | Yes |
| FlexSpace Tines | Yes |
| Full Size Stainless Steel Tall Tub | Yes |
| Delay Start | Yes |
| Flexible Silverware Basket | Yes |
| UL Listed | Yes |
| Self-Latching Door | Yes |
| ExtraScrub Option | Yes |
| Extra Dry Option | Yes |
| Speed60 | Yes |
| PrecisionWash | Yes |
| 5 Wash Cycles | Yes |
| Optimized Detergent Tray | Yes |
| Spray Arms | Yes |
| The Bosch Quality | Yes |
| ExtraShine Option | Yes |
| EcoSilence Drive | Yes |
| Bar Handle | Yes |
| Bosch SHX863WD5N Technical Details |
| Color | Stainless Steel |
| Weight | 91 lbs |
| Width | 23.56" |
| Control Type | Buttons |
| Volts | 120 Volts |
| Amps | 12 Amps |
| Child Lock | No |
| Wattage | 1440 Watts |
| Cutout Width | 23.625" |
| Cutout Depth | 24" |
| Cutout Height | 33.875" |
| Five-Level Wash | Yes |
| Frequency | 60 Hz. |
| Normal Cycle | Yes |
| Number of Options | 5 |
| Length Outlet Hose (in) | 79" |
| Delay Wash | Yes |
| Adjustable Racks | Yes |
| Leak Protection System | 24/7 AquaStop |
| Adjustable Feet | Yes |
| Handle Style | Bar Handle |
| Heavy Cycle | Yes |
| Third Rack | Standard 3rd rack |
| Auto Cycle | Yes |
| Rack Adjustability | Rackmatic |
| Water Usage per Cycle | 3.5 |
| Extra Dry Option | Yes |
| Speed60 | Yes |
| Standard 3rd rack | Yes |
| FlexSpace Tines | Yes |
| Minimum Water Pressure(lb/sin) | 14 |
| PrecisionWash | Yes |
| Load Size Sensor | Yes |
| 24 h Delay Start Timer | Yes |
| Self-Latching Door | Yes |
| Concealed Water Heating Element | Yes |
| InfoLight | Yes |
| Full Size Stainless Steel Tall Tub | Yes |
| LED Remaining Time Display | Yes |
| Flexible Silverware Basket | Yes |
| ExtraScrub Option | Yes |
| Half Load Options | Yes |
| Detergent Tray Optimizes | Yes |
| Rinse Cycle | Yes |
| DoubleFlex Silverware Basket | Yes |
| Total Annual Water Consumption(g) | 623.5 |
| Total Annual Energy Consumption(kWh) | 269 |
| Bosch SHX863WD5N Dimensions |
| Exterior Width | 24" |
| Depth | 23.75" |
| Height | 33.875" |
