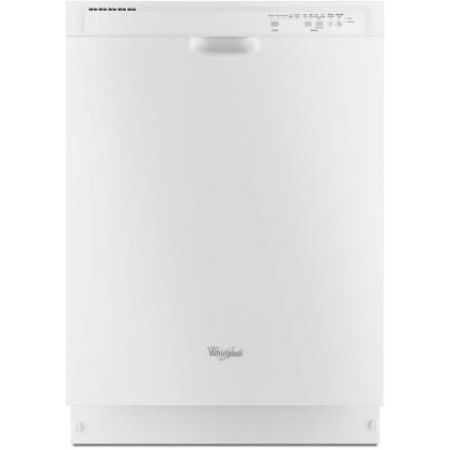

| Whirlpool WDF540PADW Appearance |
| Type | Built-In |
| Control Style | Full Console |
| Cycles | 5 |
| Capacity | 14 Place Settings |
| Accepts Panels | No |
| Whirlpool WDF540PADW Handle |
| Handle Type | Pocket |
| Whirlpool WDF540PADW Features |
| Noise Level | 53 dba |
| Number of Racks | 2 |
| Rack Material | Nylon |
| Tall Tub | Yes |
| Tub Material | Plastic |
| Quick Wash | No |
| Water Softener | No |
| Cutlery Tray | Yes |
| Hard Food Disposer | No |
| Steam Wash | No |
| ADA Compliant | No |
| Energy Star | Yes |
| NSF Certified | Yes |
| AnyWare Plus Silverware Basket | Yes |
| 1-Hour Wash Cycle | Yes |
| Sani Rinse Option | Yes |
| Delay Start | Yes |
| High Temperature Wash | Yes |
| Whirlpool WDF540PADW Technical Details |
| Color | White |
| Width | 23.875" |
| Volts | 120 Volts |
| Amps | 15 Amps |
| Child Lock | Yes |
| Approved for Outdoor Use | No |
| Cutout Width | 24" |
| Cutout Depth | 24" |
| Cutout Height | 34" |
| Delicate Cycle | No |
| Filter | Manual |
| Frequency | 60 Hz. |
| Warranty Terms | Limited 1 Year Parts and Labor |
| Variable Spray Pressure | No |
| Delay Wash | Yes |
| Air Dry | No |
| Adjustable Racks | No |
| Heated Dry | Yes |
| Depth with Door at 90 Degrees | 49.5" |
| Rinse Only Cycle | No |
| Cycle Time | 60 Minutes |
| Soil Sensor | No |
| Touch Sensitive Controls | Yes |
| Eco-Friendly Wash Cycle | No |
| Fan Dry | No |
| Status Light | Yes |
| Condensate Dry | No |
| 1-Hour Wash Cycle | Yes |
| Weight | 110.00 lbs |
| Whirlpool WDF540PADW Dimensions |
| Exterior Width | 24" |
| Depth | 24.5" |
| Height | 33.5" |
