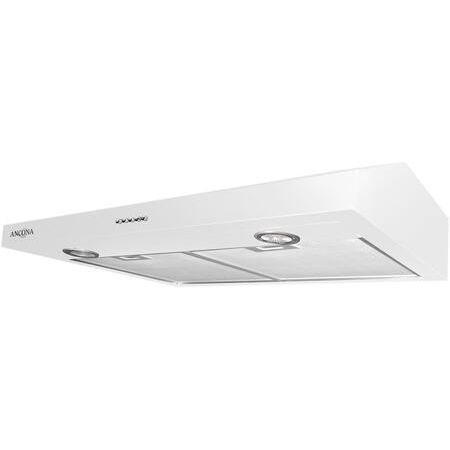

| Ancona AN1222 Appearance |
| Style | Standard Hood |
| Venting Type | Ducted |
| Blower Type | Internal |
| Ancona AN1222 Features |
| Vent Location | Top or Rear |
| Duct Type | Rectangular |
| Light | Yes |
| Light Bulb Type | Halogen |
| Number of Fan Speeds | 3 or More |
| Aluminum Mesh Filters | Yes |
| cULus Listed | Yes |
| 430 Stainless Steel | Yes |
| Ancona AN1222 Technical Details |
| Color | White |
| Type | Hood |
| Width | 29.5" |
| Volts | 120 Volts |
| Amps | 15 Amps |
| Mounting Type | Under Cabinet |
| Filter Type | Mesh |
| Frequency | 60 Hz. |
| Fan | Yes |
| Recirculating Kit | No |
| Name | Slim |
| Number of Light Bulbs | 2 |
| Duct Length | 3.25" |
| Duct Width | 10" |
| Glass Canopy | No |
| Weight | 26.67 lbs |
| Ancona AN1222 Dimensions |
| Exterior Width | 30" |
| Height | 5" |
| Depth | 19" |
| CFM | 325 CFM |
