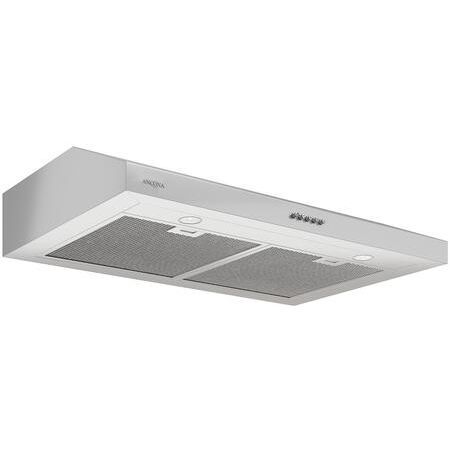

| Ancona AN1290R Appearance |
| Style | Standard Hood |
| Venting Type | Non Ducted |
| Blower Type | Internal |
| Ancona AN1290R Features |
| Vent Location | Top or Rear |
| Duct Type | Rectangular |
| Light | Yes |
| Light Bulb Type | Halogen |
| Number of Fan Speeds | 3 or More |
| 430 Stainless Steel | Yes |
| Ancona AN1290R Technical Details |
| Color | Stainless Steel |
| Type | Hood |
| Width | 29.5" |
| Volts | 120 Volts |
| Amps | 15 Amps |
| Material | 430 Stainless Steel |
| Mounting Type | Under Cabinet |
| Filter Type | Charcoal |
| Frequency | 60 Hz. |
| Fan | Yes |
| Recirculating Kit | Included |
| Name | Slim SDR |
| Number of Light Bulbs | 2 |
| Duct Length | 3.25" |
| Duct Width | 10" |
| Glass Canopy | No |
| Convertible Ducting | Yes |
| Weight | 25.35 lbs |
| Ancona AN1290R Dimensions |
| Exterior Width | 30" |
| Height | 5" |
| Depth | 19" |
| CFM | 325 CFM |
