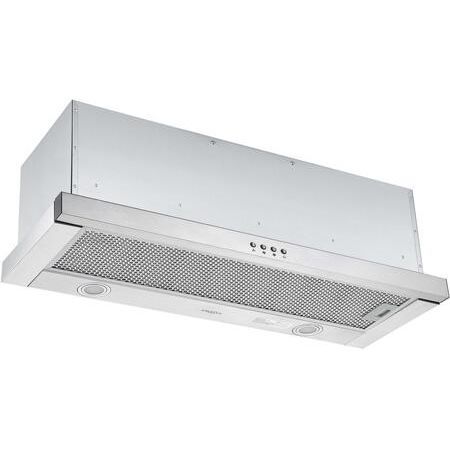

| Ancona AN1601 Appearance |
| Venting Type | Ducted |
| Blower Type | Internal |
| Filter Type | Mesh |
| Ancona AN1601 Features |
| Number of Fan Speeds | 3 or More |
| Aluminum Mesh Filters | Yes |
| 430 Stainless Steel | Yes |
| Ancona AN1601 Technical Details |
| Color | Stainless Steel |
| Type | Cabinet Insert |
| Style | Standard Hood |
| Width | 35.2" |
| Slide-Out | Yes |
| Volts | 120 Volts |
| Amps | 15 Amps |
| Light | Yes |
| Material | 430 Stainless Steel |
| Mounting Type | Under Cabinet |
| Frequency | 60 Hz. |
| Fan | Yes |
| Vent Location | Top |
| Recirculating Kit | No |
| Duct Type | Rectangular |
| Number of Light Bulbs | 2 |
| Light Bulb Type | LED |
| Duct Length | 3.7" |
| Duct Width | 6.1" |
| Weight | 33.73 lbs |
| Ancona AN1601 Dimensions |
| Exterior Width | 36" |
| Height | 11" |
| Depth | 12.6" |
| CFM | 425 CFM |
