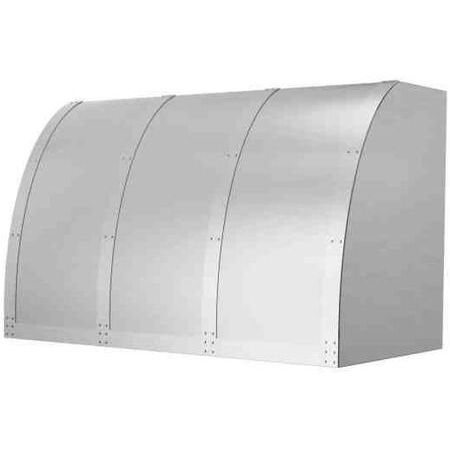

| BlueStar AT042MLPLTDC Appearance |
| Type | Hood |
| Style | Canopy Pro Style |
| Venting Type | Ducted |
| Blower Type | Blower not Included |
| BlueStar AT042MLPLTDC Features |
| Vent Location | Top or Rear |
| Duct Type | Round |
| Light | Yes |
| Light Bulb Type | LED |
| Number of Fan Speeds | 3 or More |
| Glass Canopy | No |
| Stainless Steel Construction | Yes |
| Stainless Steel Baffle Filter | Yes |
| Multi-Stage Grease Capture System | Yes |
| BlueStar AT042MLPLTDC Technical Details |
| Color | Standard RAL Paint |
| Width | 42" |
| Volts | 120 Volts |
| Amps | 15 Amps |
| Mounting Type | Wall Mount |
| Filter Type | Baffle |
| Frequency | 60 Hz. |
| Fan | Yes |
| Pro-Style | Yes |
| Name | Atlas |
| Number of Light Bulbs | 2 |
| Strapping and Rivets Options | Designer Metal |
| Weight | 180.00 lbs |
| BlueStar AT042MLPLTDC Dimensions |
| Height | 30" |
| Exterior Width | 42" |
| Depth | 24" |
| CFM | 1400 CFM |
