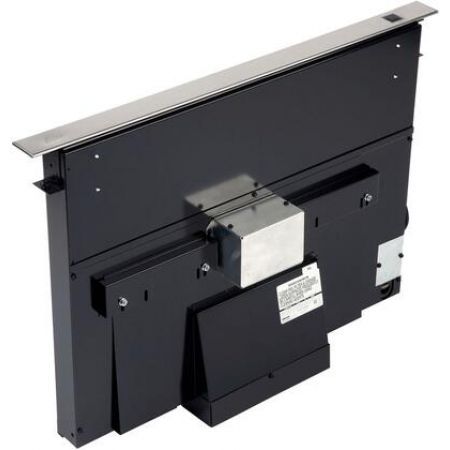

| Broan 283603 Appearance |
| Venting Type | Ducted |
| Blower Type | Blower not Included |
| Broan 283603 Features |
| Duct Type | Rectangular |
| Number of Fan Speeds | Variable |
| UL Listed | Yes |
| Stainless Steel Finish | Yes |
| Removable Grease Filter | Yes |
| Aluminum Mesh Filters | Yes |
| Broan 283603 Technical Details |
| Color | Stainless Steel |
| Weight | 42.7 lbs. |
| Energy Star | No |
| Voltage | 120 Volts |
| Type | Downdraft |
| Style | Slide-Out |
| Width | 36" |
| Watts | 720 Watts |
| Volts | 120 Volts |
| Amps | 15 Amps |
| Approved for Outdoor Use | No |
| Length | 7" |
| Mounting | Wall Mount |
| Material | Stainless Steel |
| Filter Type | Mesh |
| Commercial | No |
| Frequency | 60 Hz. |
| Warranty Terms | 1 Year |
| Amperage | 6 |
| UL | Yes |
| Shape | Rectangle |
| Fan | Yes |
| cUL | Yes |
| Make-Up Air Compliant | No |
| Duct Length | 10" |
| Duct Width | 3.25" |
| Vertical Rise | 7" |
| Recirculating Kit | No |
| Glass Canopy | No |
| Broan 283603 Dimensions |
| Exterior Width | 36" |
| Depth | 3.75" |
| Height | 21.625" |
| CFM | 900 CFM |
