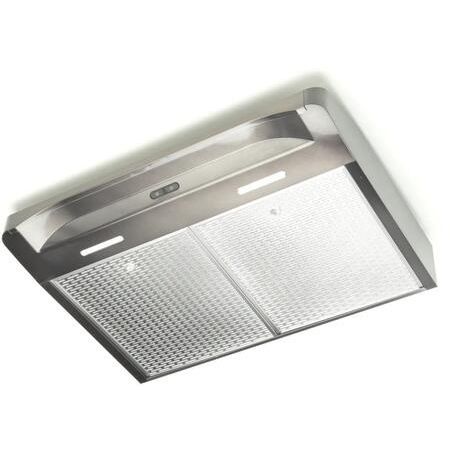

| Broan ALT230BLS Appearance |
| Style | Standard Hood |
| Venting Type | Convertible |
| Blower Type | Internal |
| Broan ALT230BLS Features |
| Vent Location | Top or Rear |
| Duct Type | Both |
| Light | Yes |
| Light Bulb Type | LED |
| Number of Fan Speeds | 3 or More |
| Bright LED Lighting | Yes |
| Deluxe Micro Mesh Filter | Yes |
| Broan ALT230BLS Technical Details |
| Color | Black Stainless Steel |
| Energy Star | No |
| Type | Hood |
| Width | 29.875" |
| Volts | 120 Volts |
| Amps | 15 Amps |
| Approved for Outdoor Use | No |
| Mounting Type | Under Cabinet |
| Filter Type | Mesh |
| Frequency | 60 Hz. |
| Fan | Yes |
| Recirculating Kit | Sold Separately |
| Duct Diameter | 7" |
| Number of Light Bulbs | 2 |
| Duct Length | 3.25" |
| Duct Width | 10" |
| Glass Canopy | No |
| Weight | 42.00 lbs |
| Broan ALT230BLS Dimensions |
| Exterior Width | 30" |
| Height | 5" |
| Depth | 22" |
| CFM | 300 CFM |
