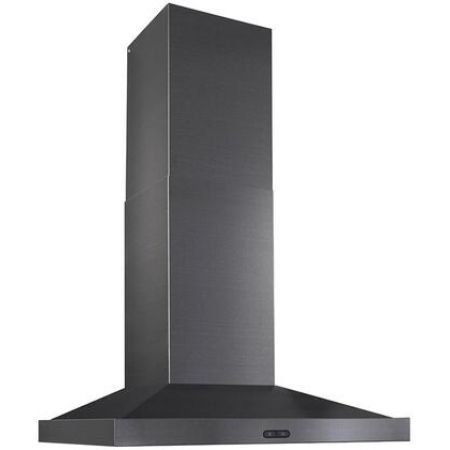

| Broan EW5430BLS Appearance |
| Type | Hood |
| Style | Chimney Style |
| Venting Type | Ducted |
| Blower Type | Internal |
| Broan EW5430BLS Features |
| Vent Location | Top or Rear |
| Duct Type | Both |
| Light | Yes |
| Light Bulb Type | Halogen |
| Number of Fan Speeds | 3 or More |
| Glass Canopy | No |
| UL Certification | Yes |
| HVI Certified | Yes |
| Aluminum Mesh Filters | Yes |
| Broan EW5430BLS Technical Details |
| Color | Black Stainless Steel |
| Energy Star | No |
| Width | 29.875" |
| Watts | 576 Watts |
| Volts | 120 Volts |
| Amps | 15 Amps |
| Approved for Outdoor Use | No |
| Mounting Height | 24" - 30" |
| Mounting Type | Wall Mount |
| Filter Type | Mesh |
| Commercial | No |
| Frequency | 60 Hz. |
| Warranty Terms | 1 Year of Parts and Labor |
| UL | Yes |
| Fan | Yes |
| Recirculating Kit | No |
| Duct Diameter | 6" |
| cUL | Yes |
| Make-Up Air Compliant | No |
| Number of Light Bulbs | 2 |
| Duct Length | 10" |
| Duct Width | 3.25" |
| Weight | 60.00 lbs |
| Broan EW5430BLS Dimensions |
| Height | 43.5" |
| Exterior Width | 30" |
| Depth | 20" |
| CFM | 500 CFM |
