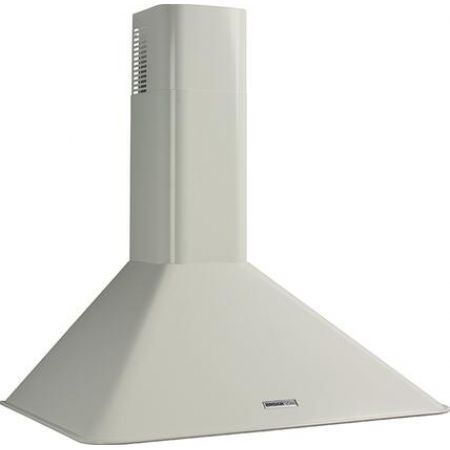

| Broan RM503001 Appearance |
| Type | Hood |
| Style | Chimney Style |
| Venting Type | Convertible |
| Blower Type | Internal |
| Broan RM503001 Features |
| Vent Location | Top |
| Duct Type | Round |
| Light | Yes |
| Light Bulb Type | Incandescent |
| Number of Fan Speeds | 2 |
| Glass Canopy | No |
| Heat Sentry | Yes |
| UL Certification | Yes |
| HVI Certified | Yes |
| Aluminum Mesh Filters | Yes |
| Broan RM503001 Technical Details |
| Color | White |
| Energy Star | No |
| Width | 30" |
| Volts | 120 Volts |
| Amps | 15 Amps |
| Approved for Outdoor Use | No |
| Temperature Sensor | Yes |
| Mounting Type | Wall Mount |
| Filter Type | Mesh |
| Frequency | 60 Hz. |
| Warranty Terms | 1 Year Parts and Labor |
| UL | Yes |
| Fan | Yes |
| Recirculating Kit | Sold Separately |
| Duct Diameter | 6" |
| cUL | Yes |
| Minimum Height | 33" |
| Make-Up Air Compliant | Yes |
| Duct Cover Height | 20.5" |
| Number of Light Bulbs | 2 |
| Adjustable Duct Cover | Yes |
| Minimum Duct Cover Height | 13.375" |
| Weight | 55.00 lbs |
| Broan RM503001 Dimensions |
| Height | 43" |
| Exterior Width | 30" |
| Depth | 19.625" |
| CFM | 290 CFM |
