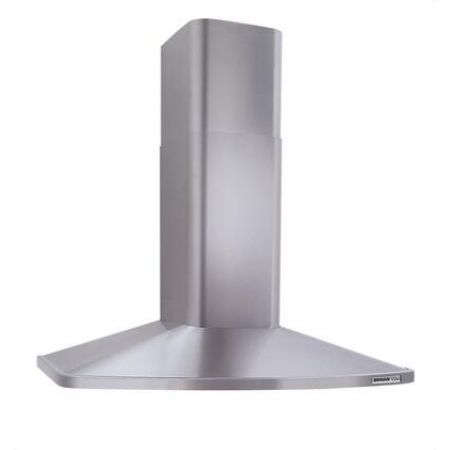

| Broan RM523004 Appearance |
| Type | Hood |
| Style | Chimney Style |
| Venting Type | Convertible |
| Blower Type | Internal |
| Broan RM523004 Features |
| Vent Location | Top |
| Duct Type | Round |
| Light | Yes |
| Light Bulb Type | Halogen |
| Number of Fan Speeds | 3 or More |
| Glass Canopy | No |
| HVI Certified | Yes |
| Removable Grease Filter | Yes |
| Heat Sentry | Yes |
| UL Certification | Yes |
| Stainless Steel Finish | Yes |
| Aluminum Mesh Filters | Yes |
| Broan RM523004 Technical Details |
| Color | Stainless Steel |
| Weight | 41.5 lbs. |
| Energy Star | No |
| Width | 30" |
| Volts | 120 Volts |
| Amps | 15 Amps |
| Approved for Outdoor Use | No |
| Mounting Height | 24" - 30" |
| Temperature Sensor | Yes |
| Mounting Type | Wall Mount |
| Filter Type | Mesh |
| Commercial | No |
| Frequency | 60 Hz. |
| Warranty Terms | One Year |
| UL | Yes |
| Fan | Yes |
| Recirculating Kit | Sold Separately |
| Duct Diameter | 6" |
| cUL | Yes |
| Make-Up Air Compliant | Yes |
| Number of Light Bulbs | 2 |
| Adjustable Duct Cover | Yes |
| Minimum Duct Cover Height | 30" |
| Broan RM523004 Dimensions |
| Height | 45" |
| Exterior Width | 30" |
| Depth | 19.625" |
| CFM | 370 CFM |
