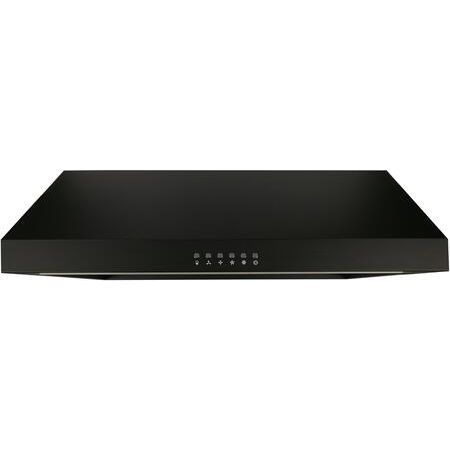

| Cyclone PTB5630MB Appearance |
| Style | Canopy Pro Style |
| Venting Type | Ducted |
| Blower Type | Internal |
| Cyclone PTB5630MB Features |
| Light | Yes |
| Light Bulb Type | LED |
| Number of Fan Speeds | 3 or More |
| Dishwasher Safe Baffle Filters | Yes |
| Delay Shut Off | Yes |
| Push Button Control Panel | Yes |
| Cyclone PTB5630MB Technical Details |
| Color | Matte Black |
| Weight | 37 lbs. |
| Type | Hood |
| Width | 29.875" |
| Volts | 120 Volts |
| Amps | 15 Amps |
| Finish | Matte Black |
| Mounting Type | Under Cabinet |
| Filter Type | Baffle |
| Frequency | 60 Hz. |
| CSA Certified | Yes |
| Fan | Yes |
| Number of Light Bulbs | 2 |
| Glass Canopy | No |
| Warrenty Terms | 2 Years Parts and Labor |
| Cyclone PTB5630MB Dimensions |
| Exterior Width | 30" |
| Height | 10" |
| Depth | 22.25" |
| CFM | 680 CFM |
