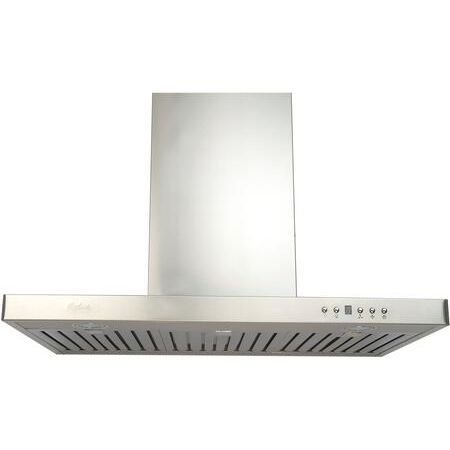

| Cyclone SCB72236 Appearance |
| Type | Hood |
| Style | Chimney Style |
| Venting Type | Ducted |
| Blower Type | Internal |
| Cyclone SCB72236 Features |
| Duct Type | Round |
| Light | Yes |
| Light Bulb Type | LED |
| Number of Fan Speeds | 3 or More |
| Glass Canopy | No |
| Dishwasher Safe Baffle Filters | Yes |
| Delay Shut Off | Yes |
| Stainless Steel Construction | Yes |
| Push Button Control Panel | Yes |
| Cyclone SCB72236 Technical Details |
| Color | Stainless Steel |
| Weight | 45 lbs. |
| Width | 35.625" |
| Volts | 120 Volts |
| Amps | 15 Amps |
| Finish | Stainless Steel |
| Mounting Type | Wall Mount |
| Filter Type | Baffle |
| Frequency | 60 Hz. |
| CSA Certified | Yes |
| Fan | Yes |
| Duct Diameter | 6" |
| Number of Light Bulbs | 2 |
| Warrenty Terms | 2 Years Parts and Labor |
| Cyclone SCB72236 Dimensions |
| Height | 44.25" |
| Exterior Width | 36" |
| Depth | 19.75" |
| CFM | 650 CFM |
