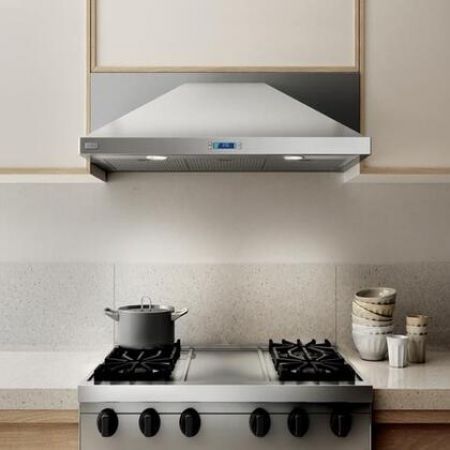

| Elica EMD530S2 Appearance |
| Style | Chimney Style |
| Venting Type | Convertible |
| Blower Type | Internal |
| Elica EMD530S2 Features |
| Vent Location | Top or Rear |
| Duct Type | Both |
| Light | Yes |
| Light Bulb Type | Halogen |
| Number of Fan Speeds | 3 or More |
| Made in USA | No |
| Stainless Steel Microhole Filters | Yes |
| Heat Guard | Yes |
| CFM Reduction System (CRS) | Yes |
| Elica EMD530S2 Technical Details |
| Color | Stainless Steel |
| Energy Star | No |
| Type | Hood |
| Width | 30" |
| Watts | 550 Watts |
| Installation Type | Ducted or Recirculating Installation |
| Volts | 120 Volts |
| Amps | 15 Amps |
| Approved for Outdoor Use | No |
| Controls | Multi-function electronic controls with LCD display |
| Dishwasher Safe Filters | Yes |
| Mounting Type | Under Cabinet |
| Filter Type | Mesh |
| Commercial | No |
| Frequency | 60 Hz. |
| Warranty Terms | 2 Year Parts and Labor, In-Home Service |
| UL | Yes |
| Light Type | Halogen |
| Fan | Yes |
| Duct Diameter | 7" |
| Duct Transition | 31/4 x 10 with Back Draft Damper (top or rear), or 7 Round (top) sold separately |
| Illumination | 2, 40 Watt Halogen Lamps, 2 Light Intensities (bulbs included) |
| cUL | Yes |
| Make-Up Air Compliant | Yes |
| Number of Light Bulbs | 2 |
| Duct Length | 10" |
| Duct Width | 3.25" |
| Energy Star Approval | No |
| Recirculating Kit | Sold Seperatly |
| Weight | 41.00 lbs |
| Elica EMD530S2 Dimensions |
| Exterior Width | 30" |
| Height | 9" |
| Depth | 20" |
| CFM | 520 CFM |
