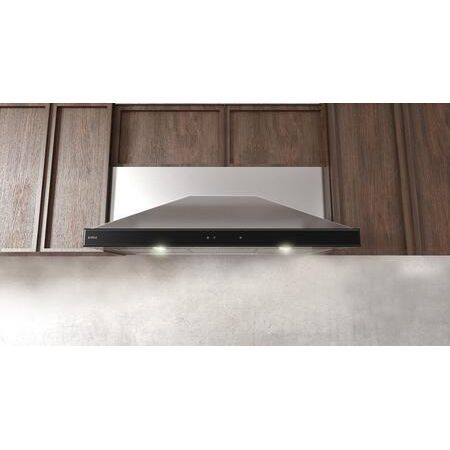

| Elica EMD536S3 Appearance |
| Style | Standard Hood |
| Venting Type | Convertible |
| Blower Type | Internal |
| Elica EMD536S3 Features |
| Vent Location | Top or Rear |
| Duct Type | Rectangular |
| Light | Yes |
| Light Bulb Type | LED |
| Number of Fan Speeds | 3 or More |
| CFM Reduction System (CRS) | Yes |
| Stainless Steel Microhole Filters | Yes |
| HUSH Silence System | Yes |
| Heat Guard | Yes |
| Elica EMD536S3 Technical Details |
| Color | Stainless Steel with Black Glass |
| Energy Star | No |
| Type | Hood |
| Width | 36" |
| Watts | 455 Watts |
| Volts | 120 Volts |
| Amps | 15 Amps |
| Approved for Outdoor Use | No |
| Mounting Height | 24-30" |
| Temperature Sensor | Yes |
| Mounting Type | Under Cabinet |
| Filter Type | Mesh |
| Commercial | No |
| Frequency | 60 Hz. |
| Warranty Terms | Limited 2 Year Parts and Labor |
| UL | Yes |
| Fan | Yes |
| Recirculating Kit | Sold Separately |
| Pro-Style | Yes |
| cUL | No |
| Make-Up Air Compliant | Yes |
| Name | Modena |
| Number of Light Bulbs | 2 |
| Duct Length | 10" |
| Duct Width | 3.25" |
| Glass Canopy | No |
| Weight | 45.00 lbs |
| Elica EMD536S3 Dimensions |
| Exterior Width | 36" |
| Height | 9.75" |
| Depth | 19.625" |
| CFM | 520 CFM |
