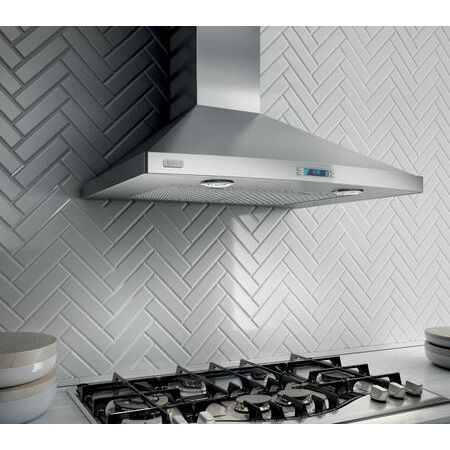

| Elica EPL630S1 Appearance |
| Type | Hood |
| Style | Chimney Style |
| Venting Type | Convertible |
| Blower Type | Internal |
| Elica EPL630S1 Features |
| Vent Location | Top |
| Duct Type | Round |
| Light | Yes |
| Light Bulb Type | Halogen |
| Number of Fan Speeds | 3 or More |
| Glass Canopy | No |
| Made in USA | No |
| Anodized Aluminum Mesh Filters | Yes |
| Stainless Steel Microhole Filters | Yes |
| Heat Guard | Yes |
| CFM Reduction System (CRS) | Yes |
| Elica EPL630S1 Technical Details |
| Color | Stainless Steel |
| Energy Star | No |
| Width | 30" |
| Watts | 490 Watts |
| Installation Type | Ducted or Recirculating Installation |
| Volts | 120 Volts |
| Approved for Outdoor Use | No |
| Controls | Multi-function electronic with LCD display |
| Dishwasher Safe Filters | Yes |
| Temperature Sensor | Yes |
| Mounting Type | Wall Mount |
| Commercial | No |
| Frequency | 60 Hz. |
| Warranty Terms | Limited 2 Year Parts and Labor, In-Home Service |
| Fan | Yes |
| Duct Diameter | 6" |
| Telescopic Chimney Extension | For heights 7' 11" - 9' 2" (ducted); For heights 7' 11" - 9' 6" (recirculating) |
| Amps at 120 Volts | 4.1 Amps |
| Illumination | Illumination 2, 40 Watt Halogen Lamps, 2 Light Intensities (bulbs included) |
| Make-Up Air Compliant | Yes |
| Number of Light Bulbs | 2 |
| Energy Star Approval | No |
| Recirculating Kit | Sold Seperatly |
| Weight | 52.00 lbs |
| Elica EPL630S1 Dimensions |
| Height | 10.25" |
| Exterior Width | 30" |
| Depth | 21.5" |
| CFM | 600 CFM |
