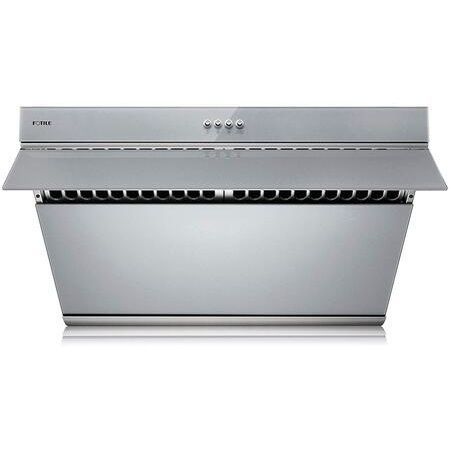

| Fotile JQG7502G Appearance |
| Style | Canopy Pro Style |
| Venting Type | Ducted |
| Blower Type | Internal |
| Fotile JQG7502G Features |
| Vent Location | Top |
| Duct Type | Round |
| Light | Yes |
| Light Bulb Type | Halogen |
| Number of Fan Speeds | 3 or More |
| Made in USA | No |
| Dual-Centrifuge Fan System | Yes |
| Fotile JQG7502G Technical Details |
| Color | Silver Grey |
| Energy Star | No |
| Type | Hood |
| Width | 29.875" |
| Control Type | Mechanical Button |
| Volts | 120 Volts |
| Amps | 15 Amps |
| Approved for Outdoor Use | No |
| Mounting Type | Under Cabinet |
| Filter Type | Baffle |
| Commercial | No |
| Frequency | 60 Hz. |
| Warranty Terms | 5 Years Limited Warranty |
| UL | No |
| Fan | Yes |
| Recirculating Kit | No |
| Duct Diameter | 6" |
| cUL | No |
| Make-Up Air Compliant | No |
| Number of Light Bulbs | 2 |
| Glass Canopy | No |
| Weight | 76.00 lbs |
| Fotile JQG7502G Dimensions |
| Exterior Width | 30" |
| Height | 46.4375" |
| Depth | 18.25" |
| CFM | 510 CFM |
