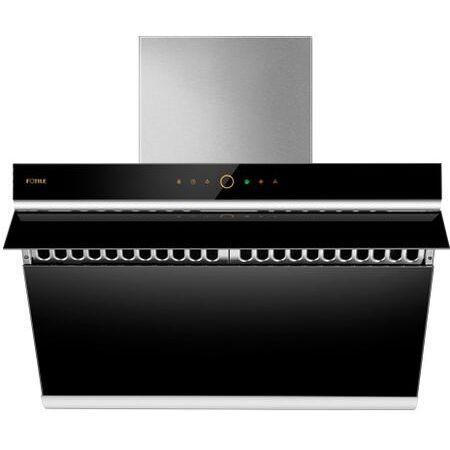

| Fotile JQG7505 Appearance |
| Type | Hood |
| Style | Chimney Style |
| Venting Type | Ducted |
| Blower Type | Internal |
| Fotile JQG7505 Features |
| Vent Location | Top |
| Duct Type | Round |
| Light | Yes |
| Light Bulb Type | LED |
| Number of Fan Speeds | 3 or More |
| Delay Turn Off | Yes |
| Glass Canopy | No |
| ETL | Yes |
| Fotile JQG7505 Technical Details |
| Color | Onyx Black |
| Weight | 58.2 lbs. |
| Width | 29.875" |
| Watts | 256 Watts |
| Volts | 120 Volts |
| Amps | 15 Amps |
| Mounting Type | Wall Mount |
| Filter Type | Baffle |
| Frequency | 60 Hz. |
| Warranty Terms | 5 Years Limited |
| UL | No |
| Fan | Yes |
| Recirculating Kit | No |
| Duct Diameter | 6" |
| cUL | No |
| Number of Light Bulbs | 2 |
| Adjustable Duct Cover | Yes |
| Minimum Duct Cover Height | 32.4375" |
| Maximum Duct Cover Height | 46.4375" |
| Fotile JQG7505 Dimensions |
| Height | 17.4375" |
| Exterior Width | 30" |
| Depth | 18.25" |
| CFM | 600 CFM |
