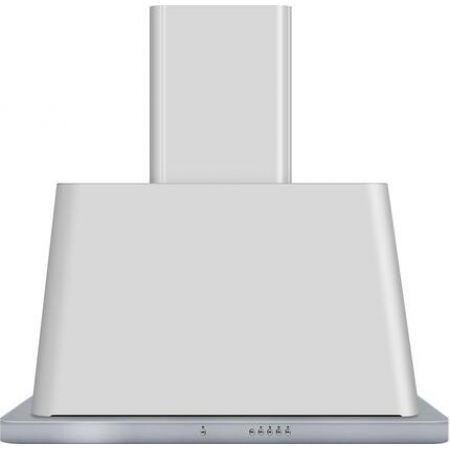

| ILVE UAM76WH Appearance |
| Type | Hood |
| Style | Chimney Style |
| Venting Type | Ducted |
| Blower Type | Internal |
| ILVE UAM76WH Features |
| Vent Location | Top |
| Duct Type | Round |
| Light | Yes |
| Light Bulb Type | Halogen |
| Number of Fan Speeds | 3 or More |
| Glass Canopy | No |
| Handcrafted from Italy | Yes |
| High-End Workmanship | Yes |
| Anodized Aluminum Grease Filters | Yes |
| ILVE UAM76WH Technical Details |
| Color | White |
| Width | 29.875" |
| Volts | 120 Volts |
| Amps | 15 Amps |
| Mounting Type | Wall Mount |
| Filter Type | Mesh |
| Frequency | 60 Hz. |
| Warranty Terms | 2 Year Warranty |
| Fan | Yes |
| Recirculating Kit | No |
| Duct Diameter | 5.9375" |
| Height without Chimney | 17.3125" |
| Programmable Turn Off | Yes |
| Weight | 60.00 lbs |
| ILVE UAM76WH Dimensions |
| Height | 31.5" |
| Exterior Width | 30" |
| Depth | 23.625" |
| CFM | 600 CFM |
