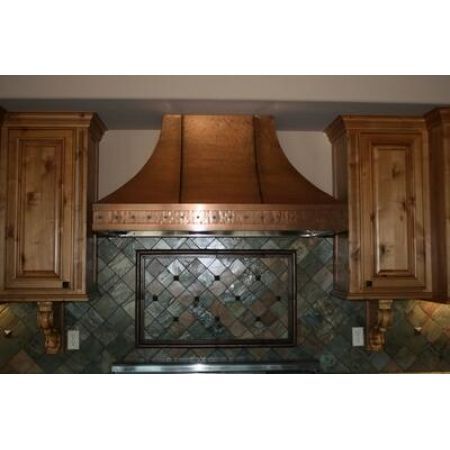

| Imperial WB48CDP Appearance |
| Type | Hood |
| Style | Chimney Style |
| Venting Type | Ducted |
| Blower Type | Internal |
| Imperial WB48CDP Features |
| Vent Location | Top |
| Duct Type | Round |
| Light | Light Bulbs Not Included |
| Light Bulb Type | Halogen |
| Glass Canopy | No |
| Made in USA | Yes |
| Dishwasher-Safe Baffle Filters | Yes |
| Imperial WB48CDP Technical Details |
| Color | Copper with Dark Patina |
| Energy Star | No |
| Volts | 115 Volts |
| Amps | 15 Amps |
| Approved for Outdoor Use | No |
| Mounting Type | Wall Mount |
| Filter Type | Baffle |
| Commercial | No |
| Frequency | 60 Hz. |
| Warranty Terms | 7 Year Parts and Labor on Ventilator Only |
| UL | No |
| Fan | Yes |
| Duct Diameter | 8" |
| cUL | No |
| Make-Up Air Compliant | No |
| Weight | 60.00 lbs |
| Imperial WB48CDP Dimensions |
| Height | 26" |
| Exterior Width | 48" |
| Depth | 24" |
