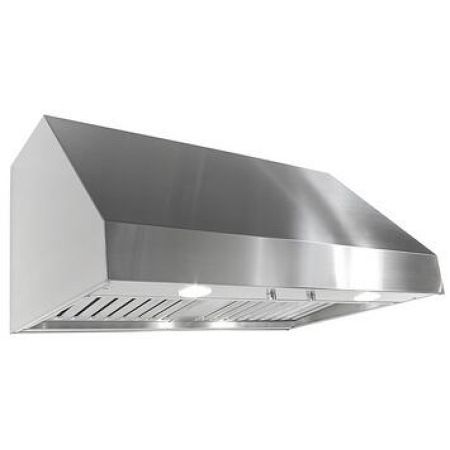

| Imperial WH193610B Appearance |
| Type | Hood |
| Style | Standard Hood |
| Venting Type | Ducted |
| Blower Type | Blower not Included |
| Imperial WH193610B Features |
| Vent Location | Top |
| Duct Type | Round |
| Light | Yes |
| Light Bulb Type | Halogen |
| Glass Canopy | No |
| Made in USA | Yes |
| Dishwasher-Safe Baffle Filters | Yes |
| Fan Speeds | Yes |
| UL Certification | Yes |
| Imperial WH193610B Technical Details |
| Color | Stainless Steel |
| Energy Star | No |
| Width | 35.8125" |
| Volts | 115 Volts |
| Amps | 15 Amps |
| Approved for Outdoor Use | No |
| Mounting Type | Wall Mount |
| Filter Type | Baffle |
| Commercial | No |
| Frequency | 60 Hz. |
| Warranty Terms | 7 Years of Parts and Labor |
| Recirculating Kit | No |
| Duct Diameter | 10" |
| cUL | Yes |
| Make-Up Air Compliant | No |
| Number of Light Bulbs | 2 |
| Weight | 30.00 lbs |
| Imperial WH193610B Dimensions |
| Height | 18" |
| Exterior Width | 36" |
| Depth | 24" |
| CFM | 1200 CFM |
