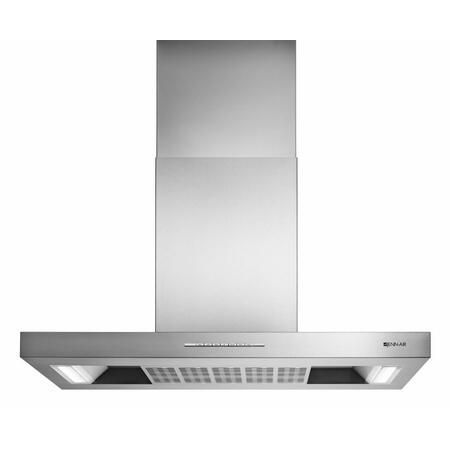

| Jenn-Air JXW8736DS Appearance |
| Type | Hood |
| Style | Chimney Style |
| Venting Type | Recirculating |
| Blower Type | Internal |
| Jenn-Air JXW8736DS Features |
| Vent Location | Top |
| Duct Type | Round |
| Light | Yes |
| Light Bulb Type | LED |
| Number of Fan Speeds | 3 or More |
| Dishwasher Safe Filter | Yes |
| Perimetric Extraction | Yes |
| Boost Function | Yes |
| Quiet Operation | Yes |
| Sleep Mode | Yes |
| Jenn-Air JXW8736DS Technical Details |
| Color | Stainless Steel |
| Width | 36" |
| Volts | 120 Volts |
| Amps | 15 Amps |
| Temperature Sensor | Yes |
| Mounting Type | Wall Mount |
| Filter Type | Mesh |
| Frequency | 60 Hz. |
| Maximum Height | 55.5" |
| Fan | Yes |
| Duct Diameter | 6" |
| Number of Light Bulbs | 2 |
| Design Options | Low Profile Canopy |
| Weight | 143.00 lbs |
| Jenn-Air JXW8736DS Dimensions |
| Height | 2.375" |
| Exterior Width | 36" |
| Depth | 19.75" |
| CFM | 600 CFM |
