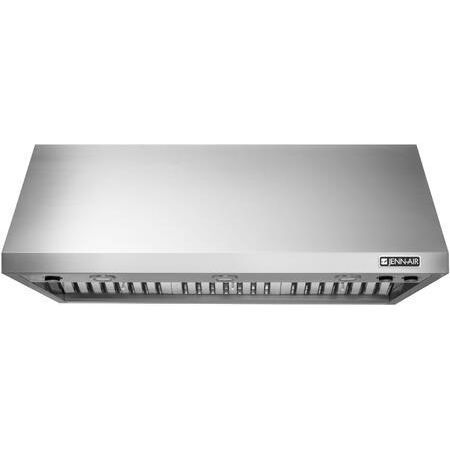

| Jenn-Air JXW9030WP Appearance |
| Type | Hood |
| Style | Canopy Pro Style |
| Venting Type | Ducted |
| Blower Type | Internal |
| Jenn-Air JXW9030WP Features |
| Vent Location | Top |
| Duct Type | Round |
| Light | Yes |
| Light Bulb Type | Halogen |
| Number of Fan Speeds | 3 or More |
| Dishwasher-Safe Baffle Filters | Yes |
| Two Lighting Levels | Yes |
| Jenn-Air JXW9030WP Technical Details |
| Color | Stainless Steel |
| Width | 30" |
| Volts | 120 Volts |
| Amps | 15 Amps |
| Mounting Type | Wall Mount |
| Filter Type | Baffle |
| Frequency | 60 Hz. |
| Fan | Yes |
| Duct Diameter | 10" |
| Number of Light Bulbs | 2 |
| Design Options | Pro-Style |
| Weight | 102.00 lbs |
| Jenn-Air JXW9030WP Dimensions |
| Height | 19.375" |
| Exterior Width | 30" |
| Depth | 25" |
| CFM | 600 CFM |
