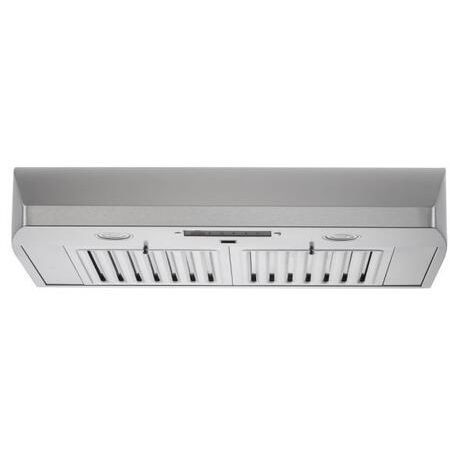

| Kobe CH2230SQB6XX Appearance |
| Style | Standard Hood |
| Venting Type | Ducted |
| Blower Type | Internal |
| Kobe CH2230SQB6XX Features |
| Vent Location | Top |
| Duct Type | Round |
| Light | Yes |
| Light Bulb Type | LED |
| Number of Fan Speeds | 3 or More |
| Automatic Turn On | Yes |
| QuietMode | Yes |
| Delay Off | Yes |
| Baffle Filters | Yes |
| ECO Mode | Yes |
| Flame and Temperature Sensor | Yes |
| Kobe CH2230SQB6XX Technical Details |
| Color | Stainless Steel |
| Type | Hood |
| Width | 29.75" |
| Volts | 120 Volts |
| Amps | 15 Amps |
| Mounting Height | 26"-30" |
| Temperature Sensor | Yes |
| Mounting Type | Under Cabinet |
| Filter Type | Baffle |
| Frequency | 60 Hz. |
| Warranty Terms | Two-Year Limited Warranty |
| Fan | Yes |
| Duct Diameter | 6" |
| Remote Controller | Optional |
| Number of Light Bulbs | 2 |
| Programmable Turn Off | Yes |
| Glass Canopy | No |
| Weight | 40.00 lbs |
| Kobe CH2230SQB6XX Dimensions |
| Exterior Width | 30" |
| Height | 6.125" |
| Depth | 22" |
| CFM | 680 CFM |
