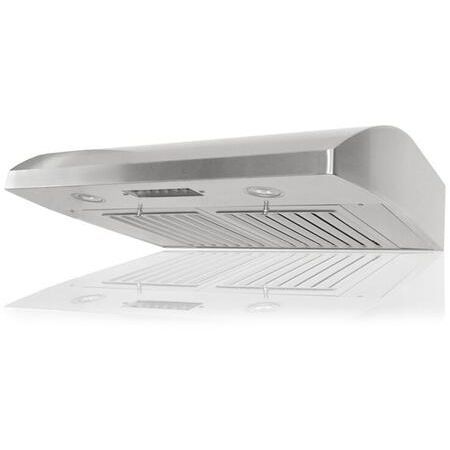

| Kobe CHX2230SQB1 Appearance |
| Style | Standard Hood |
| Venting Type | Ducted |
| Blower Type | Internal |
| Kobe CHX2230SQB1 Features |
| Vent Location | Top |
| Duct Type | Round |
| Light | Yes |
| Light Bulb Type | LED |
| Number of Fan Speeds | 3 or More |
| QuietMode | Yes |
| Removable Baffle Filters | Yes |
| Kobe CHX2230SQB1 Technical Details |
| Color | Stainless Steel |
| Energy Star | No |
| Type | Hood |
| Width | 29.75" |
| Volts | 120 Volts |
| Amps | 15 Amps |
| Approved for Outdoor Use | No |
| Mounting Height | 26" - 30" |
| Mounting Type | Under Cabinet |
| Filter Type | Baffle |
| Commercial | No |
| Frequency | 60 Hz. |
| Warranty Terms | 1 Year Limited Labor, 2 Year Limited Parts |
| UL | No |
| Fan | Yes |
| Recirculating Kit | No |
| Duct Diameter | 6" |
| cUL | No |
| Make-Up Air Compliant | No |
| Number of Light Bulbs | 2 |
| Glass Canopy | No |
| Weight | 44.00 lbs |
| Kobe CHX2230SQB1 Dimensions |
| Exterior Width | 30" |
| Height | 5.875" |
| Depth | 22" |
| CFM | 680 CFM |
