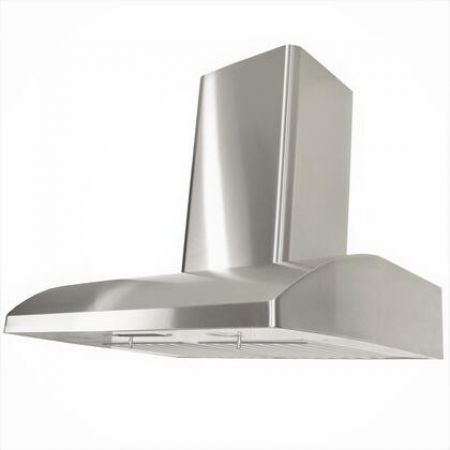

| Kobe CHX2236SQBWM1 Appearance |
| Type | Hood |
| Style | Chimney Style |
| Venting Type | Ducted |
| Blower Type | Internal |
| Kobe CHX2236SQBWM1 Features |
| Vent Location | Top or Rear |
| Duct Type | Both |
| Light | Yes |
| Light Bulb Type | LED |
| Number of Fan Speeds | 3 or More |
| Glass Canopy | No |
| QuietMode | Yes |
| Removable Baffle Filters | Yes |
| Kobe CHX2236SQBWM1 Technical Details |
| Color | Stainless Steel |
| Energy Star | No |
| Width | 35.75" |
| Watts | 232 Watts |
| Amps | 15 Amps |
| Approved for Outdoor Use | No |
| Mounting Height | 26" - 30" |
| Mounting Type | Wall Mount |
| Filter Type | Baffle |
| Commercial | No |
| Frequency | 60 Hz. |
| UL | No |
| Maximum Height | 46.875" |
| Fan | Yes |
| Recirculating Kit | No |
| Duct Diameter | 6" |
| cUL | No |
| Make-Up Air Compliant | No |
| Duct Cover Height | 41" |
| Number of Light Bulbs | 2 |
| Duct Length | 10" |
| Duct Width | 3.25" |
| Weight | 58.00 lbs |
| Kobe CHX2236SQBWM1 Dimensions |
| Height | 46.875" |
| Exterior Width | 36" |
| Depth | 22" |
| CFM | 680 CFM |
