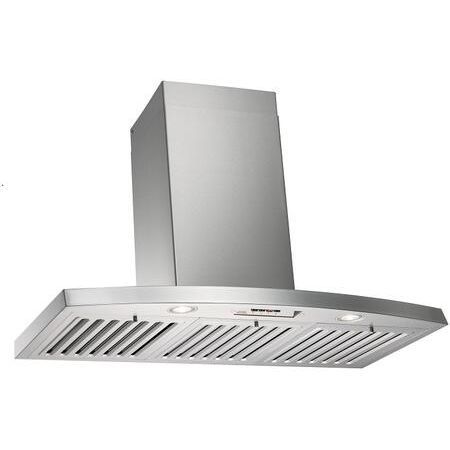

| Kobe RA2830SQBWM1 Appearance |
| Type | Hood |
| Style | Chimney Style |
| Venting Type | Ducted |
| Blower Type | Internal |
| Kobe RA2830SQBWM1 Features |
| Light | Yes |
| Light Bulb Type | LED |
| Number of Fan Speeds | 3 or More |
| QuietMode | Yes |
| Kobe RA2830SQBWM1 Technical Details |
| Width | 29.75" |
| Volts | 120 Volts |
| Amps | 15 Amps |
| Approved for Outdoor Use | No |
| Controls | Rocker Switch |
| Size | 30" |
| Design | 18-Gauge Seamless Commercial Stainless Steel |
| Mounting Type | Wall Mount |
| Filter Type | Baffle |
| Frequency | 60 Hz. |
| Warranty Terms | 1 Year Limited Labor, 2 Year Limited Parts |
| Motor Type | Double Horizontal Squirrel Cage |
| Speed | QuietMode, Low, High |
| Lights | 3W LED x 2 |
| Hood Dimension | 29.75" x 19.625" x 2" |
| QuietMode CFM / Sone | 280 / 1.0 |
| Duct Cover Width | 11.8215" |
| Duct Cover Depth | 11.25" |
| Duct Cover Height | 40.1875" |
| Weight | 50.00 lbs |
| Kobe RA2830SQBWM1 Dimensions |
| Height | 41.9375" |
| Exterior Width | 30" |
| Depth | 20" |
| CFM | 680 CFM |
