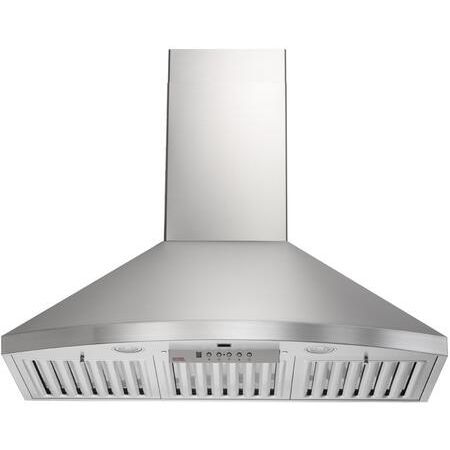

| Kobe RA9236SQB6DC30XX Appearance |
| Type | Hood |
| Style | Chimney Style |
| Venting Type | Ducted |
| Blower Type | Internal |
| Kobe RA9236SQB6DC30XX Features |
| Remote Controller | Optional |
| Vent Location | Top |
| Duct Type | Round |
| Light | Yes |
| Light Bulb Type | LED |
| Number of Fan Speeds | 3 or More |
| Automatic Turn On | Yes |
| Glass Canopy | No |
| Dishwasher Safe Baffle Filters | Yes |
| Delay Off | Yes |
| ECO Mode | Yes |
| QuietMode | Yes |
| Flame and Temperature Sensor | Yes |
| Kobe RA9236SQB6DC30XX Technical Details |
| Color | Stainless Steel |
| Width | 35.25" |
| Volts | 110 Volts |
| Amps | 15 Amps |
| Mounting Height | 26"-30" |
| Temperature Sensor | Yes |
| Mounting Type | Wall Mount |
| Filter Type | Baffle |
| Frequency | 60 Hz. |
| Warranty Terms | Two Year Limited Warranty |
| Fan | Yes |
| Ceiling Height | 9 ft to 10 ft |
| Duct Diameter | 6" |
| Duct Cover Height | 30.4375"-44" |
| Number of Light Bulbs | 2 |
| Programmable Turn Off | Yes |
| Adjustable Duct Cover | Yes |
| Minimum Duct Cover Height | 42.625" |
| Weight | 80.00 lbs |
| Kobe RA9236SQB6DC30XX Dimensions |
| Height | 56.1875" |
| Exterior Width | 36" |
| Depth | 20.5" |
| CFM | 600 CFM |
