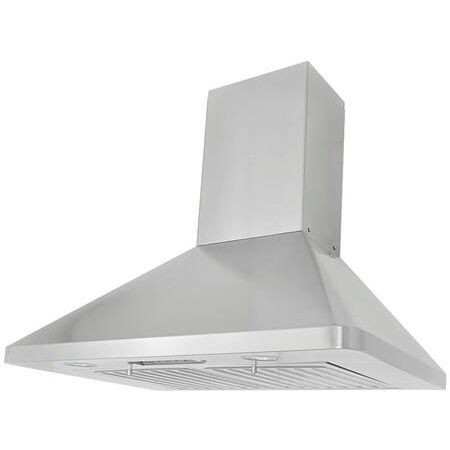

| Kobe RA9436SQBDC461 Appearance |
| Type | Hood |
| Style | Chimney Style |
| Venting Type | Ducted |
| Blower Type | Internal |
| Kobe RA9436SQBDC461 Features |
| Vent Location | Top |
| Duct Type | Round |
| Light | Yes |
| Light Bulb Type | LED |
| Number of Fan Speeds | 3 or More |
| Delay Turn Off | Yes |
| Glass Canopy | No |
| QuietMode | Yes |
| Removable Baffle Filters | Yes |
| Kobe RA9436SQBDC461 Technical Details |
| Color | Stainless Steel |
| Width | 35.75" |
| Volts | 120 Volts |
| Amps | 15 Amps |
| Mounting Height | 26" - 30" |
| Mounting Type | Wall Mount |
| Filter Type | Baffle |
| Frequency | 60 Hz. |
| Warranty Terms | 1 Year Limited Labor, 2 Year Limited Parts |
| UL | No |
| Fan | Yes |
| Recirculating Kit | No |
| Duct Diameter | 6" |
| cUL | No |
| Duct Cover Width | 10.625" |
| Duct Cover Depth | 7.875" |
| Make-Up Air Compliant | No |
| Duct Cover Height | 61" |
| Number of Light Bulbs | 2 |
| Programmable Turn Off | Yes |
| Height (min - max) | 60"-73" (Fits 10.5 - 11.5 feet Ceiling Height) |
| Weight | 65.00 lbs |
| Kobe RA9436SQBDC461 Dimensions |
| Height | 12.1875" |
| Exterior Width | 36" |
| Depth | 20.5" |
| CFM | 750 CFM |
