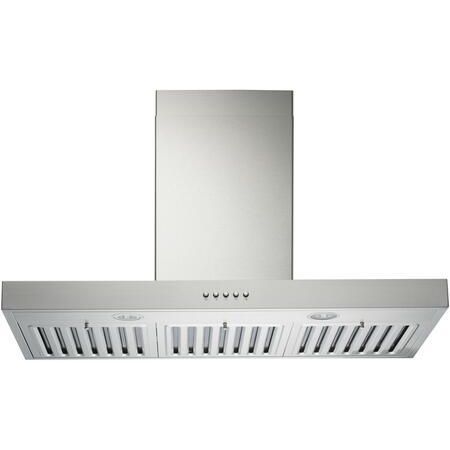

| Kobe RAX2142SQBWM1 Appearance |
| Type | Hood |
| Style | Standard Hood |
| Venting Type | Ducted |
| Blower Type | Internal |
| Kobe RAX2142SQBWM1 Features |
| Vent Location | Top |
| Duct Type | Round |
| Light | Yes |
| Light Bulb Type | LED |
| Number of Fan Speeds | 3 or More |
| Glass Canopy | No |
| QuietMode | Yes |
| Removable Baffle Filters | Yes |
| Kobe RAX2142SQBWM1 Technical Details |
| Color | Stainless Steel |
| Energy Star | No |
| Width | 41.75" |
| Volts | 120 Volts |
| Amps | 15 Amps |
| Approved for Outdoor Use | No |
| Mounting Height | 30" - 36" |
| Mounting Type | Wall Mount |
| Filter Type | Baffle |
| Commercial | No |
| Frequency | 60 Hz. |
| Warranty Terms | 1 Year Limited Labor, 2 Year Limited Parts |
| UL | No |
| Fan | Yes |
| Duct Diameter | 6" |
| cUL | No |
| Duct Cover Width | 11.8125" |
| Duct Cover Depth | 10.43" |
| Make-Up Air Compliant | No |
| Duct Cover Height | 40.125" |
| Number of Light Bulbs | 2 |
| Minimum Duct Cover Height | 21.25" |
| Weight | 55.00 lbs |
| Kobe RAX2142SQBWM1 Dimensions |
| Height | 2.375" |
| Exterior Width | 42" |
| Depth | 20" |
| CFM | 750 CFM |
