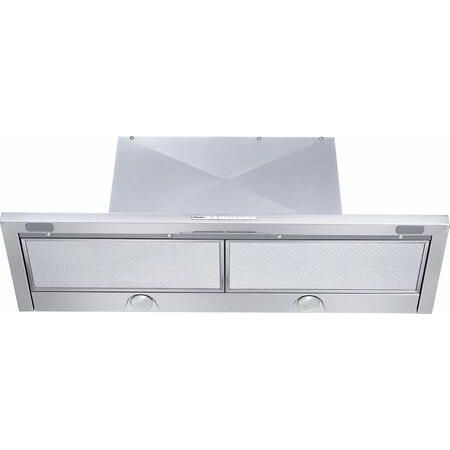

| Miele DA3496 Appearance |
| Venting Type | Convertible |
| Blower Type | Internal |
| Miele DA3496 Features |
| Vent Location | Top |
| Duct Type | Round |
| Light | Yes |
| Light Bulb Type | LED |
| Number of Fan Speeds | 3 or More |
| Automatic Turn On | Yes |
| Made in USA | No |
| LED ClearView Lighting | Yes |
| Dishwasher-Safe Grease Filter | Yes |
| Electronic Controls | Yes |
| Safety Shut-Off Control | Yes |
| CleanCover | Yes |
| Active AirClean Filter | Yes |
| Miele DA3496 Technical Details |
| Color | Stainless Steel |
| Energy Star | No |
| Type | Cabinet Insert |
| Width | 35.25" |
| Volts | 120 Volts |
| Amps | 50 Amps |
| Approved for Outdoor Use | No |
| Cutout Width | 34.19" |
| Cutout Depth | 13.75" |
| Cutout Height | 16.94" |
| Mounting Type | Under Cabinet |
| Filter Type | Mesh |
| Frequency | 60 Hz. |
| Warranty Terms | Limited 1 Year Parts and Labor |
| UL | No |
| Fan | Yes |
| Recirculating Kit | Sold Separately |
| Duct Diameter | 6" |
| cUL | No |
| Make-Up Air Compliant | Yes |
| Number of Light Bulbs | 2 |
| Cutout Minimum Depth | 11.625" |
| Cutout Minimum Width | 33.313" |
| Weight | 37.00 lbs |
| Miele DA3496 Dimensions |
| Exterior Width | 36" |
| Height | 15.063" |
| Depth | 16.75" |
| CFM | 625 CFM |
