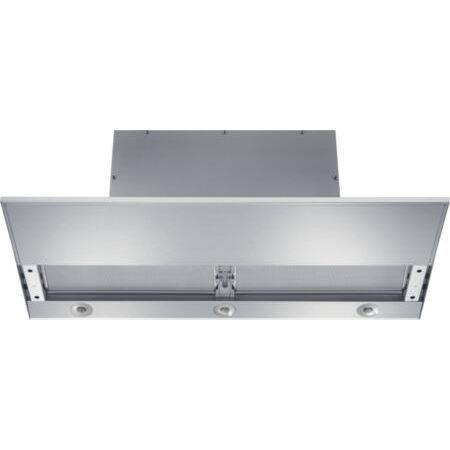

| Miele DA3698 Appearance |
| Type | Hood |
| Glass Canopy | No |
| Style | Slide-Out |
| Color | Stainless Steel |
| Miele DA3698 Details |
| Duct Type | Round |
| Venting Type | Convertible |
| Blower Type | Internal |
| Mounting Type | Under Cabinet |
| Commercial | No |
| Vent Location | Top |
| CFM | 625 CFM |
| Approved for Outdoor Use | No |
| Number of Light Bulbs | 3 |
| Light Bulb Type | LED |
| Number of Fan Speeds | 3 or More |
| Recirculating Kit | Sold Separately |
| Fan | Yes |
| Light | Yes |
| Miele DA3698 Electrical Specifications |
| Volts | 120 Volts |
| Amps | 15 Amps |
| Frequency | 60 Hz. |
| Miele DA3698 Certification |
| Energy Star | No |
| cUL | No |
| UL | No |
| Miele DA3698 Features |
| Made in USA | No |
| Luxury | Yes |
| LED ClearView Lighting | Yes |
| Dishwasher-Safe Grease Filter | Yes |
| Con@ctivity | Yes |
| Safety Shut-Off Control | Yes |
| CleanCover | Yes |
| Filter Indicator | Yes |
| Delayed Shutdown | Yes |
| Active AirClean Filter | Yes |
| Economy Motor | Yes |
| Miele DA3698 Technical Details |
| Make-Up Air Compliant | Yes |
| Programmable Turn Off | Yes |
| Weight | 45 lbs |
| Miele DA3698 Dimensions |
| Exterior Width | 36" |
| Duct Diameter | 6" |
| Height | 14.82" |
| Depth | 17.82" |
| Width | 35.125" |
