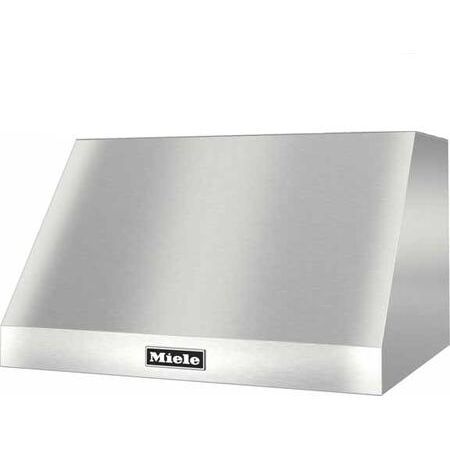

| Miele DAR1230 Appearance |
| Type | Hood |
| Style | Canopy Pro Style |
| Venting Type | Ducted |
| Blower Type | Blower not Included |
| Miele DAR1230 Features |
| Vent Location | Top |
| Duct Type | Round |
| Light | Yes |
| Light Bulb Type | LED |
| Number of Fan Speeds | 3 or More |
| Glass Canopy | No |
| LED ClearView Lighting | Yes |
| Vented Mode | Yes |
| Miele DAR1230 Technical Details |
| Color | Stainless Steel |
| Energy Star | No |
| Width | 35.94" |
| Volts | 120 Volts |
| Amps | 15 Amps |
| Approved for Outdoor Use | No |
| Temperature Sensor | Yes |
| Mounting Type | Wall Mount |
| Filter Type | Baffle |
| Commercial | No |
| Frequency | 60 Hz. |
| Warranty Terms | Limited 1 Year Parts and Labor |
| UL | No |
| Fan | Yes |
| Recirculating Kit | Sold Separately |
| Duct Diameter | 7.25" |
| cUL | No |
| Branded | Yes |
| Weight | 103.60 lbs |
| Miele DAR1230 Dimensions |
| Height | 18" |
| Exterior Width | 36" |
| Depth | 24.063" |
| CFM | 1100 CFM |
