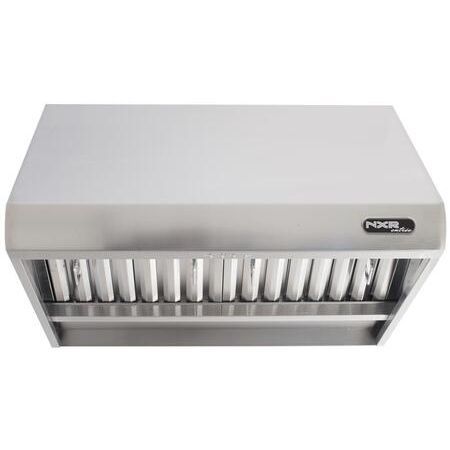

| NXR RH3001 Appearance |
| Type | Hood |
| Style | Canopy Pro Style |
| Venting Type | Ducted |
| Blower Type | Internal |
| NXR RH3001 Features |
| Vent Location | Rear |
| Duct Type | Both |
| Light | Yes |
| Light Bulb Type | Halogen |
| Number of Fan Speeds | 3 or More |
| Glass Canopy | No |
| Push Button Control | Yes |
| Stainless Steel Baffle Filter | Yes |
| NXR RH3001 Technical Details |
| Color | Stainless Steel |
| Energy Star | No |
| Width | 30" |
| Volts | 120 Volts |
| Amps | 15 Amps |
| Approved for Outdoor Use | No |
| Mounting Type | Wall Mount |
| Filter Type | Baffle |
| Commercial | No |
| Frequency | 60 Hz. |
| Warranty Terms | 2 Year Manufacture Warranty |
| Fan | Yes |
| Recirculating Kit | No |
| Duct Diameter | 8" |
| Pro-Style | Yes |
| Number of Light Bulbs | 2 |
| Programmable Turn Off | Yes |
| Duct Length | 3.25" |
| Duct Width | 10" |
| Weight | 85.00 lbs |
| NXR RH3001 Dimensions |
| Height | 24" |
| Exterior Width | 30" |
| Depth | 18" |
| CFM | 800 CFM |
