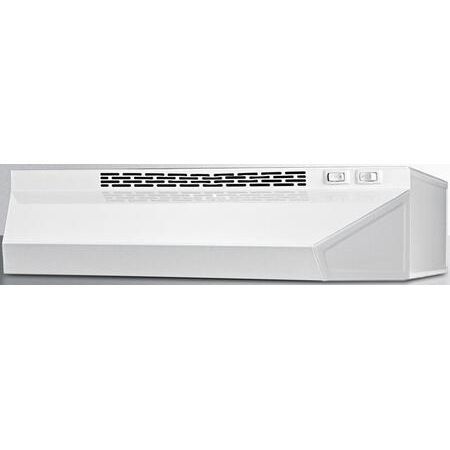

| Summit H1624W Appearance |
| Style | Standard Hood |
| Venting Type | Convertible |
| Blower Type | Internal |
| Summit H1624W Features |
| Vent Location | Top or Rear |
| Duct Type | Rectangular |
| Light | Yes |
| Number of Fan Speeds | 2 |
| Made in USA | Yes |
| Charcoal Filters | Yes |
| UL Certification | Yes |
| Summit H1624W Technical Details |
| Color | White |
| Weight | 15 lbs. |
| Energy Star | No |
| Type | Hood |
| Width | 24" |
| Volts | 115 Volts |
| Amps | 15 Amps |
| Approved for Outdoor Use | No |
| Mounting Type | Under Cabinet |
| Filter Type | Charcoal |
| Commercial | No |
| Frequency | 60 Hz. |
| Warranty Terms | 1 Year Parts & Labor |
| UL | Yes |
| Fan | Yes |
| Recirculating Kit | Included |
| Make-Up Air Compliant | Yes |
| Duct Length | 9.5" |
| Duct Width | 3" |
| Glass Canopy | No |
| Summit H1624W Dimensions |
| Exterior Width | 24" |
| Height | 5" |
| Depth | 18" |
| CFM | 180 CFM |
