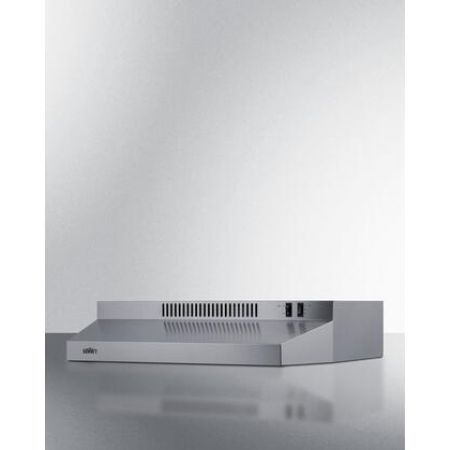

| Summit H24RSS Appearance |
| Style | Standard Hood |
| Venting Type | Convertible |
| Blower Type | Internal |
| ADA Compliant | No |
| Summit H24RSS Features |
| Vent Location | Top or Rear |
| Duct Type | Both |
| Light | Yes |
| Light Bulb Type | Incandescent |
| Number of Fan Speeds | 2 |
| Charcoal Filters | Yes |
| ETL | Yes |
| Summit H24RSS Technical Details |
| Color | Stainless Steel |
| Type | Hood |
| Width | 23.88" |
| Volts | 115 Volts |
| Amps | 15 Amps |
| Mounting Type | Under Cabinet |
| Filter Type | Mesh |
| Frequency | 60 Hz. |
| Warranty Terms | 1 Year Parts and Labor |
| Fan | Yes |
| Recirculating Kit | Included |
| Duct Diameter | 6" or 7" |
| Number of Light Bulbs | 1 |
| Duct Length | 3.25" |
| Duct Width | 10" |
| Glass Canopy | No |
| Convertible Ducting | Yes |
| Weight | 14.00 lbs |
| Summit H24RSS Dimensions |
| Exterior Width | 24" |
| Height | 5.13" |
| Depth | 18.63" |
| CFM | 220 CFM |
